Product Overview

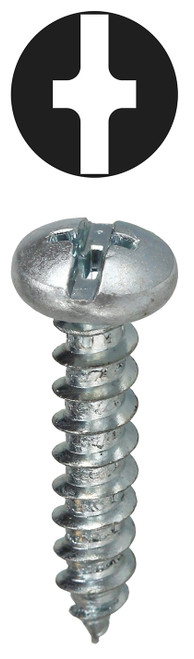

#8 x 1'' Phillips/Slotted Pan Head Sheet Metal Screw (Tuff Pack)
Sheet Metal Screws are a versatile fastener with specially hardened spaced threads and sharp points, and are capable of tapping their own internal threads. Typical applications for Sheet Metal Screws include fastening light metal sheets, wood, and plastic. They are manufactured with case hardened steel and finished with a zinc plating. ASME B18.3 covers the general requirements for the dimensions and performance of Steel Sheet Metal Screws.
Specifications
Physical Characteristics
Type
Sheet Metal Screw
Drive Type
Slotted/Phillips
Head Type
Pan
Thread Type
AB
Point Type
AB
Size
#8 x 1''
Dia./Thread Size
#8
Head Diameter
0.322'' - 0.306''
Length (in)
1''
Head Height
0.115'' - 0.105''
Thread Pitch/Thread Per Inch
18
Driver Size
#2
Material
Carbon Steel
Finish
Zinc Plated
Packaging Details
Standard Qty
500
Master Qty
3000
Price Per
100
Package Length
9.00
Package Width
9.40
Package Height
8.80
Package Weight
2.55
Net Weight
0.01
Performance Data
Rockwell Hardness
HRC 28 - 38
Special Features
Invincibox, Zinc Plated, Corrosion Resistant
Applications
Light Metal Sheets, Wood, and Plastic
Certifications
RoHS Compliant
Yes
Meets/Exceeds
ASME B18.6.3
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
