Product Overview

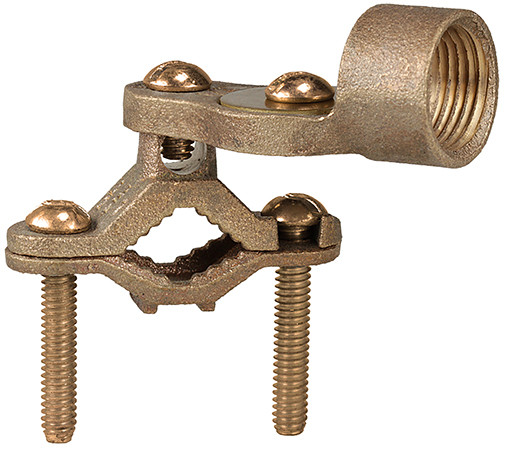

1/2''-1'' Bronze Ground Clamp w/ 1/2'' Hub
Ground Clamps with Hubs are used to connect conduit (Rigid or IMC) to steel or copper water pipe and provide a ground wire termination point. They are manufactured from a highly conductive copper alloy and have steel or bronze screws.
Specifications
Physical Characteristics
Type
Ground Clamp
Style
With Hub
Set Screw (in)
1/4''-20 x 1-1/2''
Pipe Size (in)
1/2'' - 1''
Hub Size
1/2''
Size
1/2'' - 1''
Material
Bronze
Conductor Material
Copper
Screw Material
Silicon Bronze
Packaging Details
Standard Qty
25
Master Qty
125
Price Per
100
Package Length
4.8
Package Width
10.7
Package Height
6
Net Weight
0.38
Package Weight
9.5
Performance Data
Conductor Range
10 SOL - 6 STR
Applications
Connects Copper Grounding Conductors to Rigid Conduit/IMC to Steel or Copper Water Pipe for Grounding
Environmental Conditions
Corrosive, Wet, Acidic
Certifications
RoHS Compliant
Yes
Industry Standard
UL & CSA Listed
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
