Product Overview

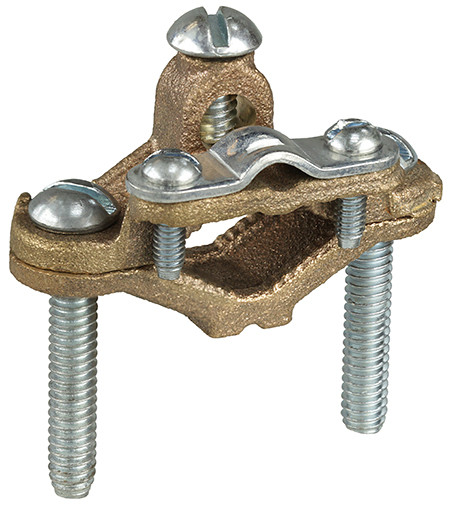

1/2''-1'' Bronze Armored Ground Clamp
Armored Ground Clamps are used to connect bare or armored copper wire to steel water pipe for grounding. They feature an integral clamp that securely holds armor conduit, and a set screw that tightly grips bare copper wire, decreasing the chances of the grounding conductors being pulled out. They are manufactured with a highly conductive copper alloy.
Specifications
Physical Characteristics
Type
Ground Clamp
Style
Armored
Set Screw (in)
1/4''-20 x 1-1/2''
Pipe Size (in)
1/2'' - 1''
Size
1/2'' - 1''
Material
Bronze
Conductor Material
Copper
Screw Material
Carbon Steel
Packaging Details
Standard Qty
25
Master Qty
250
Price Per
100
Package Length
3.8
Package Width
5.3
Package Height
6.3
Net Weight
0.2114
Package Weight
5.285
Performance Data
Conductor Range
8 SOL - 4 STR
Applications
Connects Bare or Armored Copper Wire to Steel Water Pipe for Grounding
Environmental Conditions
Corrosive, Wet, Acidic
Certifications
RoHS Compliant
Yes
Industry Standard
UL & CSA Listed
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
