Product Overview
DESCRIPTION

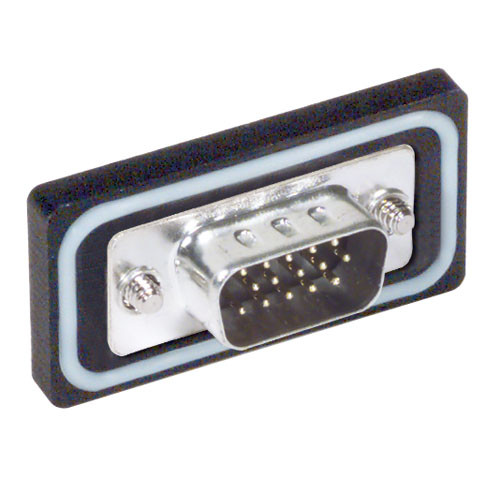

Waterproof Panel Mount Solder Cup D-Sub Connector, HD15M
Harsh outdoor or indoor environments can destroy electronic equipment. Standard D-sub connectors are not intended to withstand contaminants such as water and dust. This waterproof solder cup HD15 male connectors will accommodate wire ranges from 30 - 20 AWG. Construction features gold plated brass contacts, nickel plated steel shells, and a silicone insulating ring. Maximum recommended panel thickness is 0.078"
FEATURES
- Waterproof D-Sub panel mount solder connectors
- IP67 rating provides protection under harsh conditions
- Mounts on any panel or enclosure 0.078" thick or smaller
- Gold plated contacts provide reliable connections with repeated mating cycles
- Also available in DB9, DB15 & DB25 sizes, male & female genders
APPLICATION
- Serial data transmission
- Data networks
- Instrument control
- Device management
DESCRIPTION
Waterproof Panel Mount Solder Cup D-Sub Connector, HD15M
Harsh outdoor or indoor environments can destroy electronic equipment. Standard D-sub connectors are not intended to withstand contaminants such as water and dust. This waterproof solder cup HD15 male connectors will accommodate wire ranges from 30 - 20 AWG. Construction features gold plated brass contacts, nickel plated steel shells, and a silicone insulating ring. Maximum recommended panel thickness is 0.078"
FEATURES
- Waterproof D-Sub panel mount solder connectors
- IP67 rating provides protection under harsh conditions
- Mounts on any panel or enclosure 0.078" thick or smaller
- Gold plated contacts provide reliable connections with repeated mating cycles
- Also available in DB9, DB15 & DB25 sizes, male & female genders
APPLICATION
- Serial data transmission
- Data networks
- Instrument control
- Device management
