DESCRIPTION

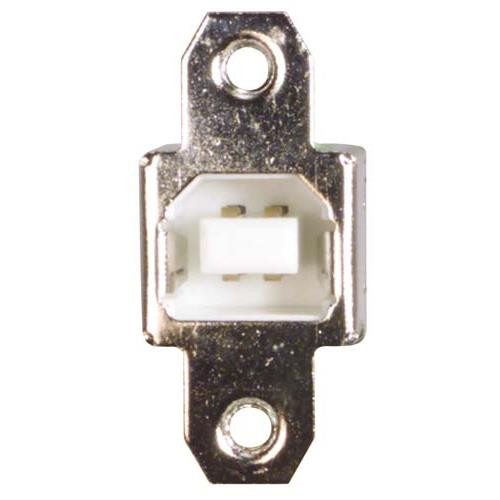

USB Type B Female Field Termination Connector
The USBBFT field termination connector provides an easy and convenient way to perform field termination for USB applications. Separate connection points are provided for all four positions of the connector plus the ground. Terminal block design with set screws provides reliable electrical connections utilizing no special tools. The terminal block area is clearly marked making proper termination virtually foolproof. The USBBFT is panel mountable using 4-40 screws provided.
FEATURES
- Used to easily terminate USB B style connectors in the field, no crimping or soldering required
- Panel mountable using 4-40 screws provided
- Terminal block allows for simple, quick wiring changes
- 30 microinch gold plated contacts provide reliable connections with repeated mating cycles
- Connector: USB B style female
APPICATION
- DAQ
- PC computing
- Industrial monitoring and control
- Test and measurement
