Description
DESCRIPTION

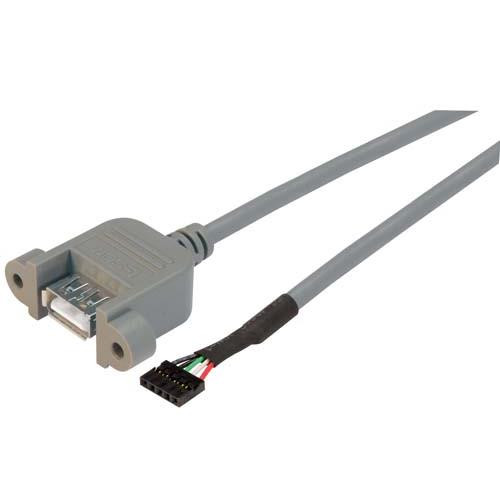

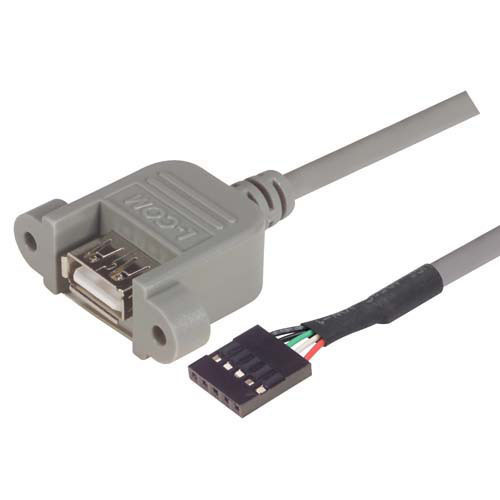

USB Type A Adapter, Female Bulkhead/Female Header 3.0m
Designed to make "board-to-box" USB connections a cinch, this light, flexible USB cable uses a pre-installed 5 pin female housing to a molded flange-mount USB type A female. Look no further for your USB panel mount solution! The cable is double shielded for maximum EMI resistance and the power conductors are 26 AWG to make the overall cable more flexible. Each assembly includes two 4-40 x 3/8" Phillips pan head mounting screws. Quantity and custom length pricing available.
FEATURES
- Allows USB cables to be passed through panels or enclosures
- Type A jack (bulkhead/panel mount) to 5 position female header connector, 0.100"/2.54mm pitch
- Mounting hardware included
- Available in lengths of 0.3, 0.5, 0.75, 1, 2 and 3 meters
- Color: Gray
APPLICATION
- PC Peripheral Interconnects
- Test and Measurement
- Data Acquisition
- Portable Data Storage
- Printer Interface
