Description
DESCRIPTION

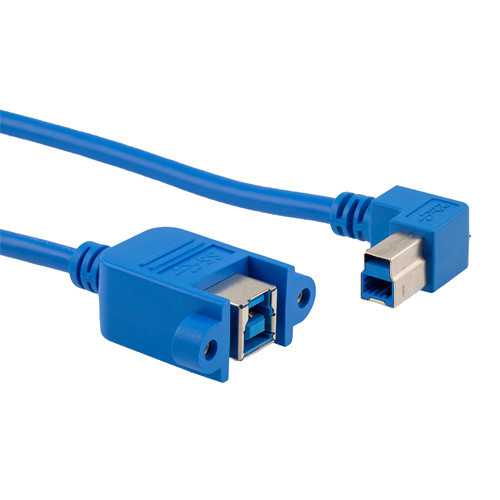

USB 3.0 Cable Assembly, Type B Panel Mount Female Jack to Type B 90 Degree Right Angle Male Plug, 30/24AWG, PVC, Blue, 0.3M
Newly designed U3A00102 family of USB 3.0 versions of L-com's popular UPM style panel mount USB adapter cables are now available with right angle connectors! This series features a bulkhead Type B 3.0 jack to a molded 90° Right Angle Type B 3.0 plug attached via USB 3.0 compliant cable. USB 3.0 systems are up to 10 times faster than USB 2.0 - 4.8 Gbps versus 480 Mbps. The increased bandwidth substantially reduces the time required for transferring large amounts of data or video. These assemblies are fully shielded and use L-com's popular UPM style housing that can be used with virtually any panel thickness. The recommended 4-40 mounting screws must be purchased separately (P/N ECF440). Custom lengths available upon request with minimal quantity requirements.
FEATURES
- Allows USB 3.0 cables to be passed through panels or enclosures
- Screw mount for secure installations
- Angled connector for tight and space constrained applications
- 30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
- UL Style 20276 PVC jacket with 24AWG power conductors for efficient power transfer; please see L-com's U3A00103 series for 22AWG options with longer lengths
APPLICATION
- Data Storage and Acquisition
- Printer Interfaces
- Video Transfer or Cameras
- Portable Data Storage
- Gaming hardware and interfaces
