DESCRIPTION

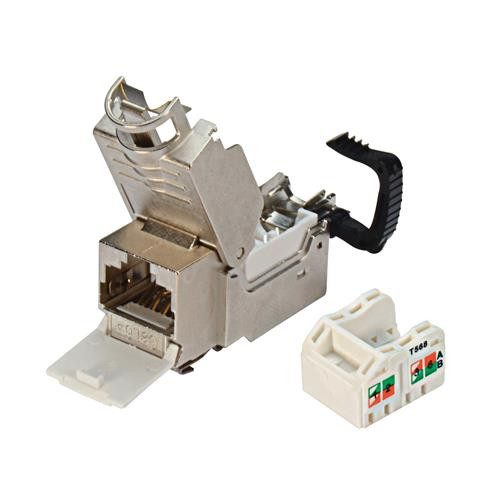

Field Terminable Category 6A RJ45 Jack
Field terminable 6A jack for 10 Gigabit networks. Termination involves inserting conductors into a wire management bar, inserting the bar into the connector and then shutting the connector. IDC termination does all the work for you and since all the conductors are terminated at the same time, it always produces a reliable and consistent termination. Perfect for creating high-performance cables in the field. The jack is also gated with an integrated dust cap so you'll never leave the port exposed again.
FEATURES
- Compliant with Category 6a standards and tested to IEC, EN and TIA standards
- Easy to use field termination RJ45 jack with integrated dust cap
- Temperature range -40°C to 68°C; Durability: 750 mating cycles minimum; Plug retention force: 30 LBS (133N) minimum
- 360° braided cover for superior shielding, contact resistance and transmission
- IDC termination with special layout to for better crosstalk performance; recommended for 23-26 AWG solid wire
APPLICATION
- Field installations and repair
- I/O connectivity
- Industrial monitoring and control
- Test and measurement
