DESCRIPTION

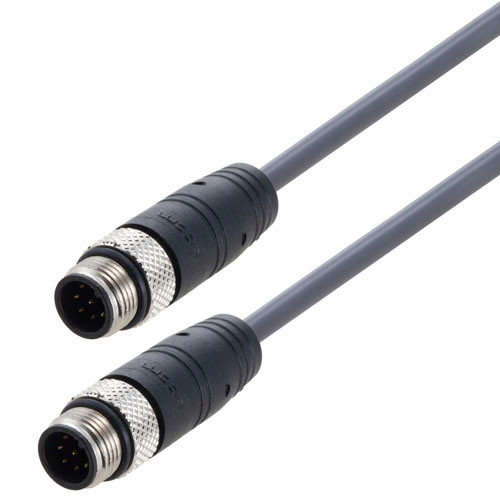

M12 8 Position A-code Shielded Industrial Outdoor Assembly, PVC Jacket, M/M, Gray, 2.0M
L-com stocks 8 Position A-coded M12 cable assemblies for use in sensor, actuator or Fieldbus applications. The single keyway A-code M12 connectors are IP67 rated when mated and are excellent for lock-down applications. All cables have moisture and sunlight resistant jackets. PUR versions have additional chemical and industrial resistances while PVC versions have a high +105°C temp range. All assemblies have UL recognized jackets and a VW-1 flame rating. Available in shielded or unshielded, with male to male or male to female ends, buy online today.
FEATURES
- UL Style 2517 PVC jacket is resistant to moisture, sunlight (UV) and has a flame rating of VW-1
- M12 connectors are threaded and IP67 rated when mated properly
- PVC jacket has a robust temperature range of -25°C to +105°C and is built with 26AWG stranded conductors for flexibility
- This assembly is straight wired and shielded for EMI/RFI protection
- Used to connect to M12 devices that utilize an 8 position, A-code (single keyway) connector
APPLICATION
- I/O connectivity
- Field Bus and CAN bus
- Food and beverage services
- Motion controller, factory automation and industrial control
- Sensors and actuators
