DESCRIPTION

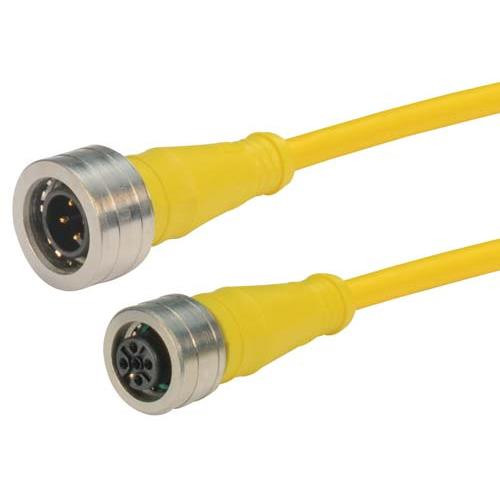

Brad Ultra-Lock M12 Cable 4 pole A code IP69K rated Male to Female 22AWG PVC YLW, 5.0m
L-com offers Brad Ultra-Lock M12 cable assemblies. Ultra-Lock connectors use a unique radial seal and mechanical-locking design that offers a fast and secure connection that secures with a quick push/pull motion. There is no need to tighten them down and wonder whether or not a tight seal was made. When mated, the IP69K rating provides excellent protection against liquids and particulate even in wash-down or submerged applications. Built with a cost-effective PVC jacket and 22AWG conductors. Assemblies are available in Male to Pigtail, Female to Pigtail and Male to Female. Buy online today.
FEATURES
- Cost-effective PVC jacket with 22AWG conductors
- Push-to-lock Brad Ultra-Lock M12 connectors ensure a fast and reliable connection every time and are compatible with standard threaded M12 receptacles (please note these Ultra-Lock M12s may not mate directly to another M12 cable so "daisy-chaining" is not recommended)
- IP69K rating (when mated) ensures excellent protection against liquids and particulate
- Need a mate for your cable or a receptacle for your enclosure or panel? Find L-com's M12 receptacles HERE
- Used to connect to M12 devices that utilize a 4 position, A coded (single keyway) connector
APPLICATION
- Fieldbus, CAN bus
- Food and beverage services
- Material handling
- Sensor or actuator applications
- Factory automation controls and equipment
