Description
DESCRIPTION

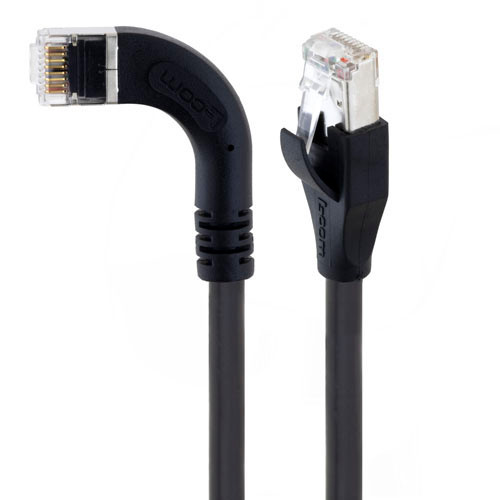

L-com's unique, patented, braid shielded right angle patch cables provide true Category 5e performance at an affordable price. These right angle Ethernet patch cables feature a specialized channel separator and load bar to achieve true Cat5e performance while maintaining a right angle bend as well as being fully shielded to limit EMI and RFI interference. Built with special, high-flex cable, these assemblies are rated for 10 million flex cycles at 8x the cable diameter making them ideal for continuous motion applications. L-com's right angle cables are superior to competitor's right angle assemblies. We've tested it ourselves and the competitor's right angle cables do not pass the Cat 5e test since the twists of the individual pairs are not maintained into the connector body. These industry first cables are perfect for use in tight fit applications and dense connectivity applications commonly found in data centers. Order online today!
FEATURES
- Flex rating: 10 million cycles at 1.82" (46.4mm) for continuous motion or automation applications
- S/UTP Braid shielded for EMI/RFI protection
- High flex PUR jacket with 26AWG stranded conductors
- Category 5e Rated; with straight RJ45 connector orientation to Right Angle Left RJ45 connector orientation
- Temperature range: -20° to 80°C
APPLICATION
- Industrial Ethernet
- Continuous motion
- Robotics
- Factory Automation or manufacturing
- Data Center
