DESCRIPTION

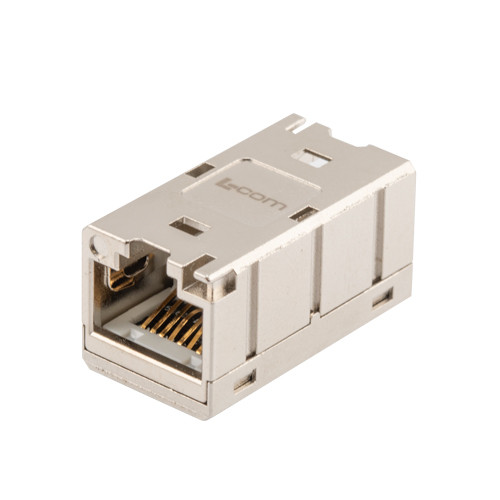

Category 6a/7 Coupler - Shielded RJ45 (8x8) Inline Feed-thru, Metal Die-Cast shell, PoE+ Rated
This newest edition to L-com's best selling Ethernet coupler line is engineered to bring high performance in a tough and compact design. This inline coupler is made from a die-cast metal shell for extra ruggedness and is shorter in length than a typical coupler for space savings. Rated for 10gig performance and appropriate for Category 6a or Category 7 networks, this coupler is also compliant to the latest PoE standards and can even be mated or unmated while under electrical load. Add ECF-DC to make a standard keystone mount or WP67-BHA-DC to make an IP67 rated bulkhead mount. Contact L-com today for your high-volume needs.
FEATURES
- high Performance, inline, die cast Ethernet Coupler rated for 10gig Cat 6a or Cat 7 applications
- Fully shielded Die cast housing reduces EMI/RFI interference, is extremely durable compared to plastic shells and is smaller than a typical Ethernet coupler to maximize usable space
- EIA568A/b dual wiring provides compatibility in every installation; PoE+ rated even under load

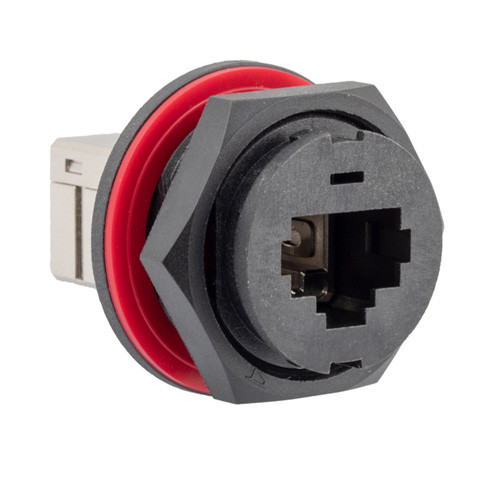

- Compatible with ECF-DC to create standard keystone mount and WP67-BHA-DC to create an IP67 rated waterproof bulkhead
- Temperature range of -40°c to 68°c; insertion life of 750 mating cycles minimum with cable to plug force of 20 lbs minimum
APPLICATION
- Premise wiring
- Voice/data networking
- Telecommunications
- Ethernet - LAN
- PoE, PoE+ & PoE++, 802.3af, 802.3at, 802.3bt Applications
