1-Port Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender

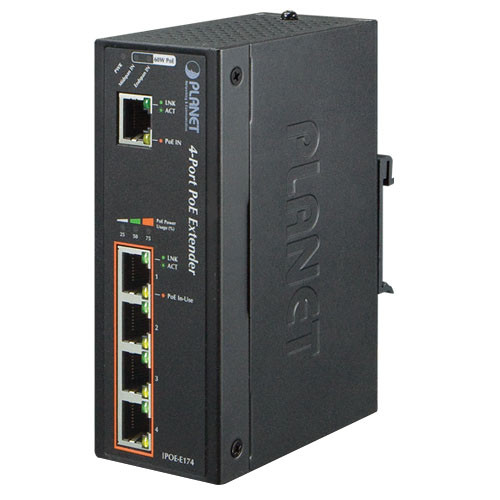

The PLANET IPOE-E174 is an industrial 1-Port Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The IPOE-E174 can obtain a maximum of 60-watt PoE power from ultra PoE input port and supplies a maximum of 50-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3at / 802.3af Power over Ethernet over the standard 100m (328 ft.) CAT. 5/5e/6 UTP cable to 200m up to 4 powered devices at the same time. The IPOE-E174 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.
FEATURES
- IP30 metal case, DIN rail and wall-mount design
- Plug and Play installation
- 5-port 10/100/1000BASE-T Gigabit RJ45 interface (1-port data + power input / 4-port data + power output)
- Supports PoE power up to 30.8 watts for each PoE port
- Up to 4 IEEE 802.3af / 802.3at devices powered
APPLICATION
- IP PoE surveillance and long-distance IP PoE camera distribution
- Long distance PoE network equipment deployment
- Long Distance VoIP (Voice over Internet Protocol) Telephones
