Product Overview

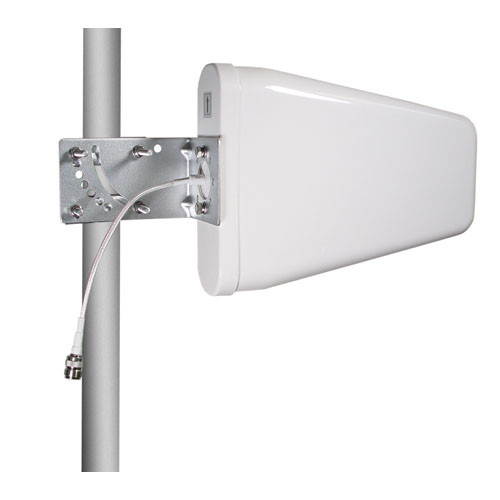

The HyperLink HG72710LP-NF is a high performance wide band log periodic antenna designed to operate from 698-960 MHz and 1710-2700 MHz. This Wideband design eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications where wide coverage is desired.
The HG72710LP-NF is ideal for Distributed Antenna Systems, DAS. A DAS system is used to distribute Cellular and WiFi signals throughout a building or area. It is also suited for directional and multipoint IEEE 802.11b/g/n wireless LANs, public wireless hotspot applications and other systems operating in the 2.4GHz ISM band. It is ideal for LPWAN/IoT/M2M apllications such as LoRA, LTE-M and NB-IoT. The broadband characteristics of the antenna enable it to operate over a very wide frequency range. This antenna features 9/10 dBi of gain and a 56°/45° vertical beam width.
The internal components of this antenna are enclosed within a UV-stable white ABS radome for all-weather operation. It is supplied with a tilt and swivel mast mount kit.
Features:
- Frequency coverage for 700 MHz, 850 MHz, AWS and PCS bands
- Weatherproof ABS
- Internal combiner eliminated the need for separate coax cables for each frequency
- Supplied with tilt and swivel mast bracket
Applications:
- DAS (Distributed Antenna Systems)
- Cellular networks
- Public safety
- IEEE 802.11b/g WiFi applications
- LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M applications
For additional information and complete specifications, click on the Data Sheet.
