Product Overview

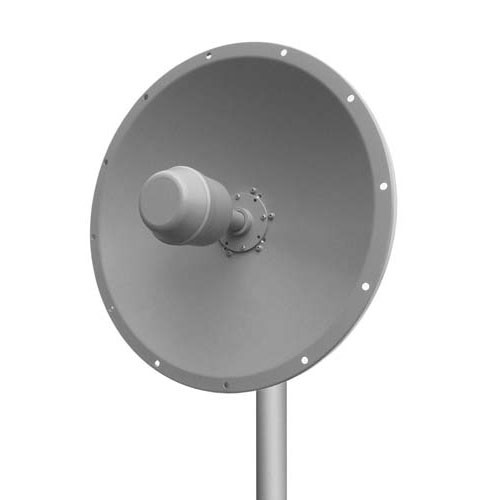

The HyperLink HG2418DPD is a high performance 18 dBi dual polarized parabolic dish antenna ideal for long range directional applications such as point to point systems, point to multi-point and wireless bridges. It is designed for use in the 2.4GHz ISM band as well as IEEE 802.11b/g/n wireless LAN systems.
Adjustable Dual Polarity Feed Horn System
The HG2418DPD features an adjustable dual polarity feed horn system which allows the antenna to be configured for Dual Polarization (horizontal and vertical) or for X-Polarization (+45° and -45°). It is fed via two 12 inch N-Female antenna leads, one for each polarized signals. This feature makes it ideal for MIMO/802.11n and polarization diversity systems. For outdoor 802.11n or MIMO applications, two polarization diverse antennas are required for the radio to operate at its highest data rate. These features make this antenna ideal for MIMO systems.
Rugged and Weatherproof
The reflector dish of the HG2418DPD is constructed from high quality aluminum which gives it superior strength. The dish is coated in a light gray UV-inhibited polymer for durability and aesthetics. The small diameter of the dish helps minimize wind loading. Supplied with the antenna is a tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment.
For additional information and complete specifications, click on Data Sheet link.
Features:
- Aluminum reflector dish with UV stable light gray polymer finish
- Adjustable dual polarity feed horn system allows the antenna to be configured for Dual Polarization (horizontal and vertical) or for X-Polarization (+45° and -45°)
- Dual 12 inch antenna leads with terminated with N-Female connectors
- Includes tilt and swivel mast mount kit
- Optional radome cover kits available
Applications:
- 2.4 GHz ISM band
- IEEE 802.11b/g/n wireless LAN, WiFi systems
- Long range directional applications
- Point to point and point to multi-point applications
- Wireless bridges and backhaul applications
