Description
DESCRIPTION

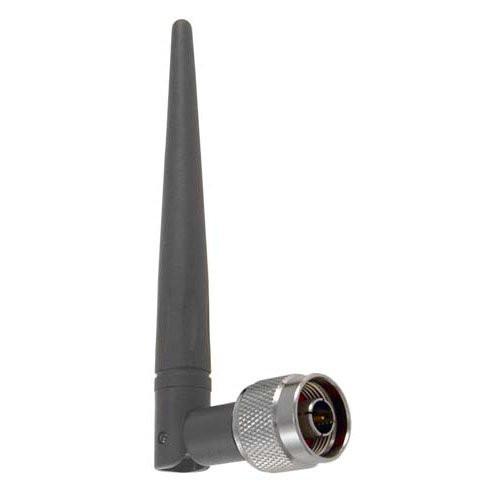

2.4 GHz 3 dBi Rubber Duck Antenna - N-Male Connector
This compact 2.4 GHz omnidirectional "rubber duck" antenna provides broad coverage and 3 dBi gain. It is a coaxial sleeve design with an omnidirectional pattern. It is ideally suited for IEEE 802.11b/g wireless LAN and other WiFi applications.
Only 5.8 inches long, this flexible antenna features a tilt-and-swivel N-Male connector, allowing it to be used vertically, at a right angle or any angle in between. It is suitable as a replacement antenna for many access points and radios that are equipped with N-Male detachable antennas. (Note: The HG2403RD is used as a "replacement" antenna rather than a "range extender" antenna. It should yield similar range to most radio's stock antennas).

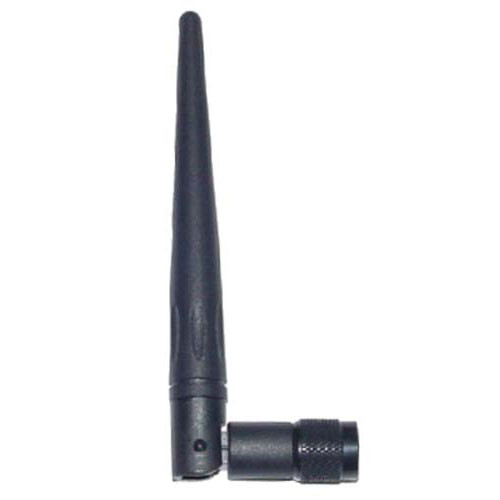

This antenna is also available with the following connectors, SMA Male (HG2403RD-SM), RP-SMA Plug (HG2403RD-RSF) and RP-TNC Plug (HG2403RD-RTF).
For additional information and complete specifications, click on the data sheet link in the Downloads tab.
This antenna is also available with the following connectors, SMA Male (HG2403RD-SM), RP-SMA Plug (HG2403RD-RSF) and RP-TNC Plug (HG2403RD-RTF).
For additional information and complete specifications, click on the data sheet link in the Downloads tab.
FEATURES
- Compact size, only 5.8" long
- Flexible "Rubber Duck" antenna
- N-Type Male Connector
- Optional Magnetic Mount Available
- Tilt and swivel design
APPLICATION
- 2.4 GHz ISM Band
- IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n (Pre-N, Draft-N) Applications
- Multipoint and Mobile Applications & Bluetooth®
- Public Wireless Hotspot
- Wireless Video Systems
