Description
DESCRIPTION

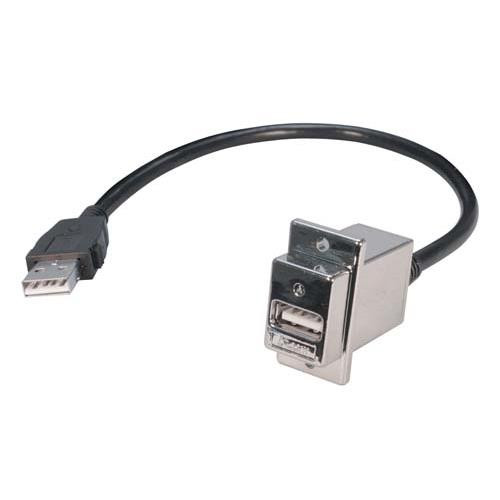

USB Type A Coupler, Female Bulkhead/Male, 24 in.
Another unique panel mount USB option features a bulkhead Type A jack to a molded Type A plug attached via USB 2.0 compliant cable. These cables can be directly connected to a mating connector inside an enclosure. These assemblies are fully shielded and use L-com's popular ECF504 style housing that can be used with virtually any panel thickness. The recommended 4-40 mounting screws must be purchased separately (P/N ECF440). Twisted pair data lines help reduce crosstalk while 20 AWG power conductors enable maximum power transfer from host to peripheral. Custom lengths available upon request with minimal quantity requirements.
FEATURES
- 20 AWG power leads allow for maximum power transfer
- 30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
- Allows USB cables to be passed through panels or enclosures
- Connectors are USB A panel mount female to standard USB A male
- Screw mount for secure installations
APPLICATION
- Data Acquisition
- Test and Measurement
- PC Peripheral Interconnects
