Description
DESCRIPTION

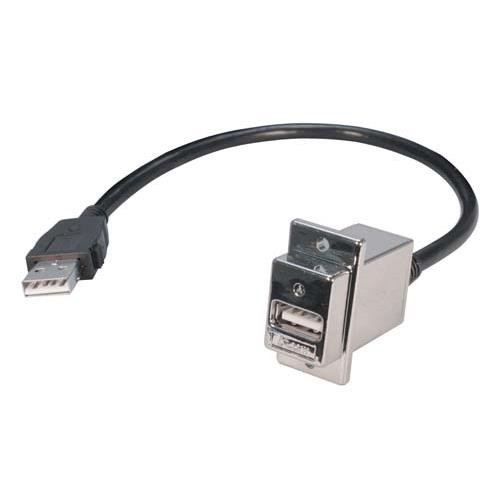

USB Type A Coupler, Female Bulkhead/Latching Male, 12 in.
Another unique panel mount USB option features a bulkhead Type A jack to a latching Type A plug attached via USB 2.0 compliant cable. These cables can be directly connected to a mating connector inside an enclosure to provide lock down mating retention with any USB Type A jack. These assemblies are fully shielded and use L-com's popular ECF504 style housing that can be used with virtually any panel thickness. The recommended 4-40 mounting screws must be purchased separately (P/N ECF440). Twisted pair data lines help reduce crosstalk while 20 AWG power conductors enable maximum power transfer from host to peripheral. Custom lengths available upon request with minimal quantity requirements.
FEATURES
- 20 AWG power leads allow for maximum power transfer
- 30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
- Allows USB cables to be passed through panels or enclosures
- Available in 12", 24", 36", 72" & 120" lengths
- Unique latching feature provides a secure connection to any USB type A jack
APPLICATION
- PC Peripheral Interconnects
- Data Acquisition
- Test and Measurement
