DESCRIPTION

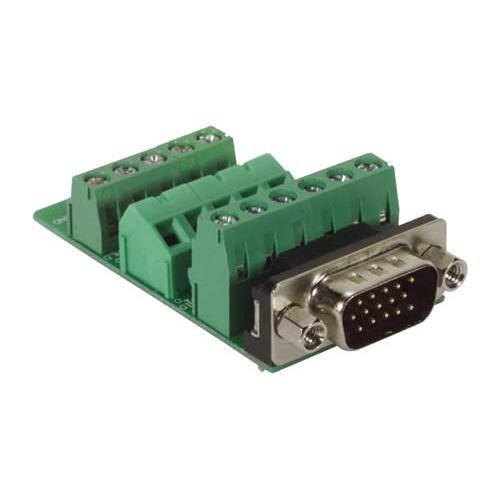

SVGA HD15 Plug for Field Termination
The DGBH15MT1 field termination male connector provides an easy and convenient way to perform field termination of any SVGA or HD15 cable. Separate connection points are provided for all 15 positions of the connector allowing a DDC compliant termination utilizing pins 9 and 15 as required by the VESA standards. Terminal block design with set screws provides reliable electrical connections utilizing no special tools. The terminal block area is clearly marked making proper termination virtually foolproof. Panel mountable for thickness up to 0.062".
FEATURES
- Easily terminate SVGA/HD15 male connectors in the field, no crimping or soldering required
- Gold plated contacts provide reliable connections with repeated mating cycles
- Panel mountable for thicknesses of up to 0.062"
- Connector is HD15 male
- Terminal block allows for simple, quick wiring changes
APPLICATION
- Video Projection
- Video Signage
- PC Monitor applications
