DESCRIPTION

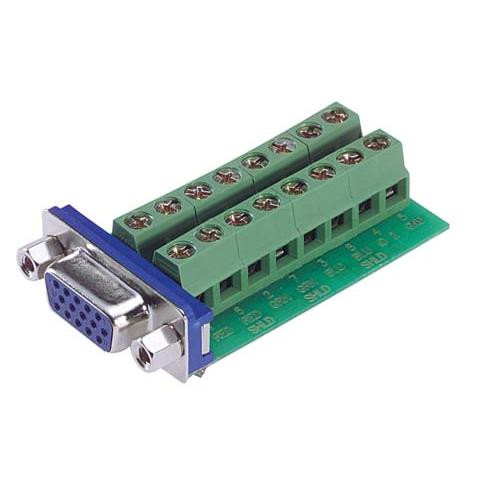

HD15 Female Connector for Field Termination - Panel Mountable
The DGBH15FT field termination female connector provides an easy and convenient way to perform field termination of any SVGA or HD15 cable. Separate connection points are provided for all 15 positions of the connector allowing a DDC compliant termination utilizing pins 9 and 15 as required by the VESA standards. Terminal block design with set screws provides reliable electrical connections utilizing no special tools. The terminal block area is clearly marked making proper termination virtually foolproof. Panel mountable for thickness up to 0.062".
FEATURES
- Gold plated contacts provide reliable connections with repeated mating cycles
- Connector is HD15 female
- Easily terminate SVGA/HD15 female connectors in the field, no crimping or soldering required
- Panel mountable for thicknesses of up to 0.062"
- Terminal block allows for simple, quick wiring changes
APPLICATION
- PC Monitor applications
- Video Projection
- Video Signage
