Product Overview
DESCRIPTION

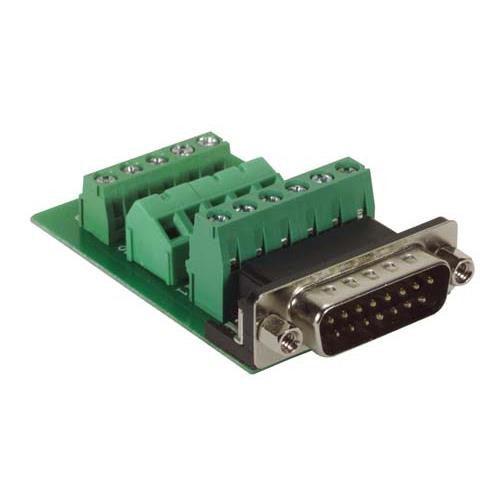

DB15 Male Connector for Field Termination
The DGB15MT1 field termination male connector provides an easy and convenient way to perform field termination of any cable. Separate connection points are provided for all 15 positions of the connector plus the ground. Terminal block design with set screws provides reliable electrical connections utilizing no special tools. The terminal block area is clearly marked making proper termination virtually foolproof. Panel mountable for thickness up to 0.062".
FEATURES
- Connector is DB15 male
- Easily terminate DB15 male connectors in the field, no crimping or soldering required
- Panel mountable for thicknesses of up to 0.062"
- Terminal block allows for simple, quick wiring changes
- Gold plated contacts provide reliable connections with repeated mating cycles
APPLICATION
- Serial data transmission
- Data networks
- Device management
- Instrument control
