Description
DESCRIPTION

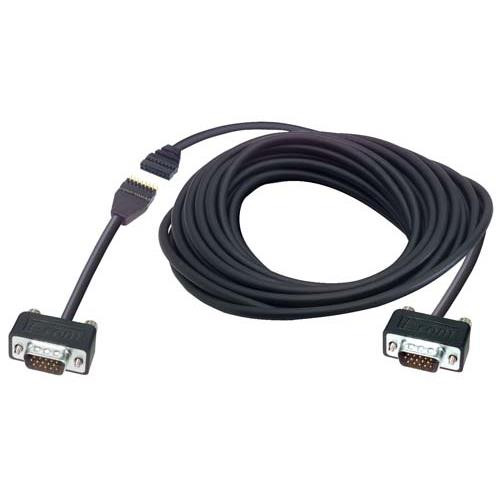

SVGA HD15 Male/Male with Disconnect 20.0 ft
Now there is a solution to your difficult installation problems. This VGA cable series features a fully populated DDC compliant assembly with (2) low profile HD15 male connectors and our Super Thin cable. An additional feature of this series is our unique user defined mounting hardware plus a low profile break connector. The low profile disconnect connector's small size allows routing through 3/4" conduit and other tight spaces that would not accommodate the size of a HD15 connector. Offered in standard lengths of 15, 20, 25, 50 and 75 feet with a 1 foot lead in length to the low profile connector.
FEATURES
- Low profile disconnect and HD15 backshell allows routing through 3/4" conduit
- SVGA video signal transmission in difficult routing situations
- User defined hardware results in maximum mounting flexibility
- Available in 5 standard lengths from 15 to 75 ft
- Three 75 Ohm coaxial cables assure optimum video signal transmission
APPLICATION
- Projector applications
- Video Signage
- KVM applications
- PC monitor applications
