USB Revision 2.0 Compliant Bulk Cable, Gray 500 ft Spool

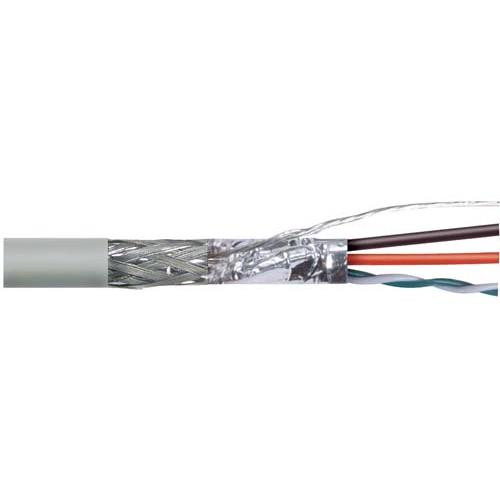

This hard to find USB cable will support the 480 Mbps transmission rate of a USB 2.0 network and is also backward compatible with older, slower USB networks. Premium USB bulk cable features two 20 AWG power conductors plus one 28 AWG twisted pair for the data lines. A flexible PVC jacket covers the braid, foil, and drain wire shield. Choose from 100, 500 or 1000 foot put-ups. Jacket color is light gray. Compatible with L-com CNUSB connector series and HOODUSB backshell series.
FEATURES
- 20 AWG power leads for maximum power transfer
- Available in 100, 500 & 1,000 ft put-ups; color is light gray
- Double shielded cable provides maximum protection against data corrupting EMI/RFI
- Ideal for the "do it yourself" user
- USB 2.0 compliant bulk cable
APPLICATION
- PC Peripheral Interconnects
- Data Acquisition
- Test and Measurement
