DESCRIPTION

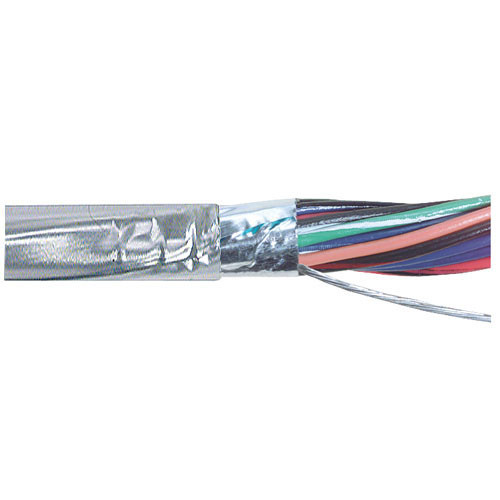

25 Conductor 24 AWG Plenum Bulk Cable, 500 ft. Spool
Some harsh environments require protection beyond the capabilities of PVC. Halar (thermoplastic fluoropolymer) insulated cable provides excellent thermal characteristics, electrical properties, and chemical resistance. Cable construction features (25) 24 AWG stranded tinned copper conductors, overall aluminum/mylar shield with 24 AWG drain wire, and Halar insulated conductors and clear cable jacket. Choose from 100, 500, or 1,000 foot put-ups. L-com will manufacture cable assemblies featuring plenum cable with modest minimum requirements.
FEATURES
- 24 AWG conductors compatible with many contacts & connectors
- Also available in 100 & 1,000 ft put-ups; jacket color is clear
- Foil shield to protect against EMI/RFI
- Dual purpose for use in extreme temperature and/or to meet fire retardancy requirements
- Temperature range is -40 Celsius to 150 Celsius
APPLICATION
- Data signal transmission
- Industrial networks
- Plenum air space installations
- Premise wiring
