Description
DESCRIPTION
Indoor 4-Port 10/100/1000 Base-T Gas Tube CAT6 Lightning Protector - RJ45 Jacks
The CMSP-CAT6T-4 lightning and surge protector provides superior lightning and surge protection for up to four lines with improved frequency response for indoor 10/100/1000 Ethernet networks. The unit has low line to line and line to ground capacitance to minimize distortion of high-speed signals. This design provides protection for both common and differential mode surges. The CMSP-CAT6T-4 utilizes gas discharge tubes on each pair for superior power handling capability.
This protector is compatible with 802.3af/at Power-over-Ethernet (PoE) devices. It supports both PoE mode A and B for power.
The CMSP-CAT6T-4 features eight shielded RJ-45 jacks for ease of installation. The rugged aluminum chassis can be wall or shelf mounted. Mounting holes are provided on the unit.

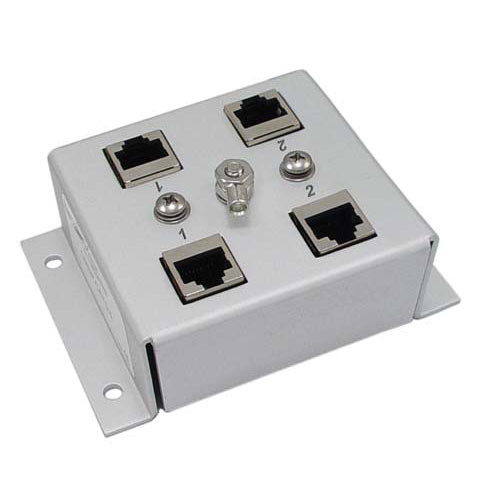

This protector is also available in a 2-port version, L-com part number CMSP-CAT6T-2.
For additional information and complete specifications, click the Data Sheet link in the Downloads tab.
FEATURES
- CAT5, CAT5e and CAT6 compatibility
- Field replaceable modules
- PoE compatible
- Protects up to 4 Ethernet lines
- Reliable differential gas tube protection
