Product Overview
DESCRIPTION

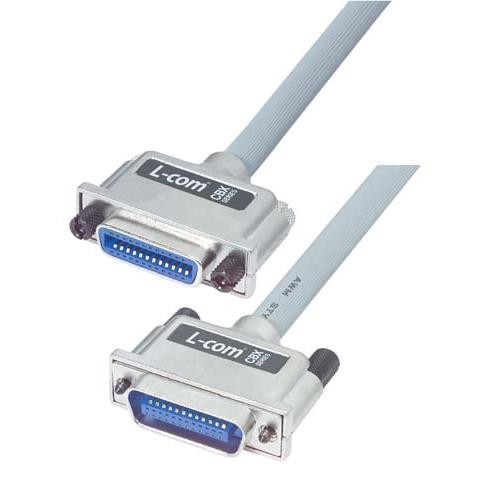

Premium IEEE-488 Extension Cable, 2.0m
This is the best IEEE-488 cable available on the market today at any price. Featuring two braid shields plus two foil shields for maximum protection against EMI (electromagnetic interference). A unique backshell design with overlapping seams coupled with a crimp ferrule strain relief results in both protection against leakage and provides enhanced mechanical strength. This combination of features ensures a highly reliable cable that will pass the most stringent emissions testing while providing years of trouble free service. One male to one female in-line connector for added convenience when standard male/female piggyback connectors are not required. Also saves cost and adds an alternative cable entry direction.
FEATURES
- Aluminum nickel-plated shells with overlapping seams are corrosion resistant and inherently immune to EMI leakage
- Cable exceeds IEEE-488 standards for connecting peripherals where EMI is an issue
- Color: Gray
- 30 microinch gold contact plating provides reliable connections with repeated mating cycles
- In-line male to in-line female connectors for GPIB cable extension applications
APPLICATION
- Data Acquisition
- Instrument Control
- Test and Measurement
