Description
DESCRIPTION

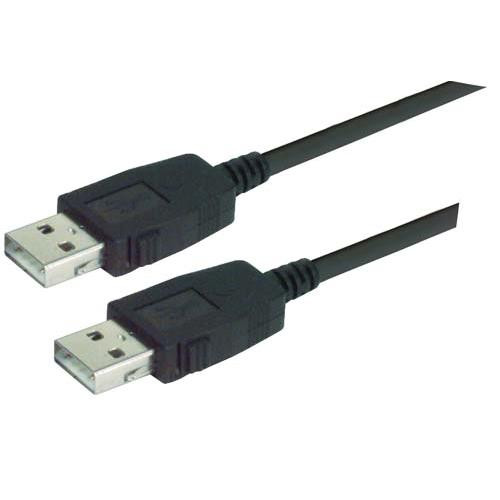

LSZH USB Cable Assembly, Latching A / Latching A 4.0m
These unique cable assemblies feature low smoke zero halogen cable jackets plus two latching Type A USB plugs which provide lock down mating retention with any USB Type A jack. Fully shielded and USB 2.0 compliant, this cable contains two 24 AWG power conductors and one 28 AWG pair for the data lines. Color is black. Low smoke zero halogen cable reduces the amount of toxic and corrosive gases emitted during combustion. Typically used in poorly ventilated areas, low smoke zero halogen is very popular with military contractors and anywhere the protection of people and equipment from toxic and corrosive gases is critical.
FEATURES
- 30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
- Unique latching feature provides a secure connection to any USB type A jack
- Available in lengths of 0.3, 0.5, 0.75, 1, 2, 3, 4 and 5 meters; color is black
- Low Smoke Zero Halogen (LSZH) Jacket for shipboard, aircraft, or other usage
- USB Revision 1.0, 1.1, and 2.0 compliant
APPLICATION
- Confined Space USB Applications
- Data Acquisition
- PC Peripheral Interconnects
- Portable Data Storage
- Test and Measurement
