DESCRIPTION

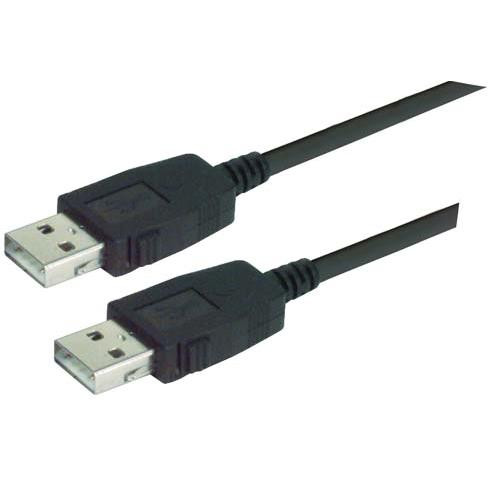

LSZH USB Cable Assembly, Latching A / Latching A 3.0m
These unique cable assemblies feature low smoke zero halogen cable jackets plus two latching Type A USB plugs which provide lock down mating retention with any USB Type A jack. Fully shielded and USB 2.0 compliant, this cable contains two 24 AWG power conductors and one 28 AWG pair for the data lines. Color is black. Low smoke zero halogen cable reduces the amount of toxic and corrosive gases emitted during combustion. Typically used in poorly ventilated areas, low smoke zero halogen is very popular with military contractors and anywhere the protection of people and equipment from toxic and corrosive gases is critical.
FEATURES
- USB Revision 1.0, 1.1, and 2.0 compliant
- 30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
- Available in lengths of 0.3, 0.5, 0.75, 1, 2, 3, 4 and 5 meters; color is black
- Low Smoke Zero Halogen (LSZH) Jacket for shipboard, aircraft, or other usage
- Unique latching feature provides a secure connection to any USB type A jack
APPLICATION
- Data Acquisition
- Test and Measurement
- Confined Space USB Applications
- PC Peripheral Interconnects
- Portable Data Storage
