L-Com BT-CAT5-P4-56118

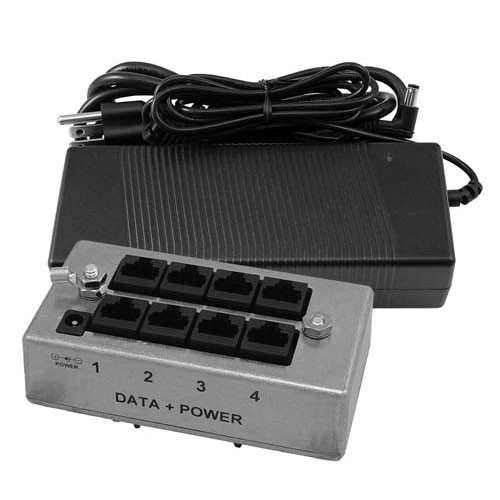

The BT-CAT5-P4-56118 Quad port passive Power-over-Ethernet (PoE) Midspan/Injector from L-com provides a low cost solution for adding PoE capability to existing network switches. The unit is ideal for supplying power for up to four Network Appliances like Wireless Access Points and Bridges, Wired Switches and Cameras and IP Telephones with PoE capability. The unit will work with Network Appliances that use the spare Ethernet data pairs to receive power. The BT-CAT5-P4-56118 features surge protection on the DC power feed and all lines are isolated from the chassis to minimize ground loops. The user can choose the appropriately sized power supply based on the equipment needs. The BT-CAT5-P4-56118 can be used with power supplies up to 60 volts DC or AC.

This kit includes the midspan/injector and a 56VDC @ 117.6W power supply (PS56118-25R).

This unit is also available individually or in the following kits:

Injector only - BT-CAT5-P4
With 48VDC @ 48 Watt Power Supply - BT-CAT5-P4-4848
With 48VDC @ 70 Watt Power Supply - BT-CAT5-P4-4870

FEATURES
