Description
DESCRIPTION

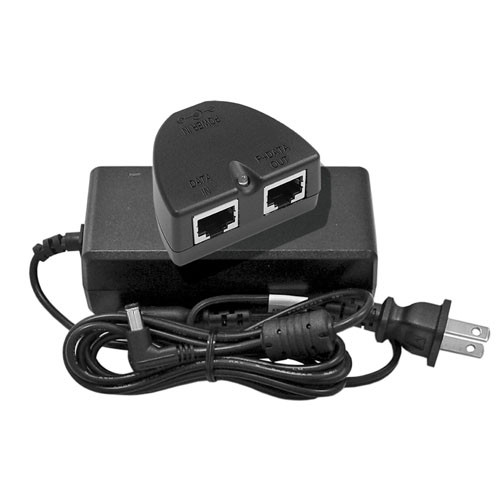

BT-CAT5-E1 Midspan/Injector Kit with 48VDC @ 48 Watt Power Supply
The BT-CAT5-E1-4848 is a compact indoor single-port CAT5 Midspan/Injector (also known as PoE Passive Splitter). It provides DC power for one PoE-equipped device and is compatible with AP's and other equipment supporting the IEEE standard PoE pinout (Pins 4/5 Power+ and Pins 7/8 Power-).
This compact Midspan/Injector features shielded RJ45 Jacks and power indicator LED. An over current protection circuit is designed into the unit for added protection of PoE devices used with this injector.
This kit includes the injector/tap and a 48VDC @ 48W power supply (PS4848-25R).
This unit is also available individually or in the following kits:

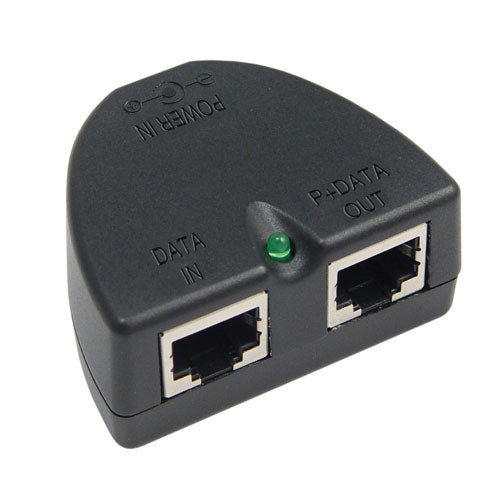

Injector only - BT-CAT5-E1
With 48VDC @ 70 Watt Power Supply - BT-CAT5-E1-4870
This kit includes the injector/tap and a 48VDC @ 48W power supply (PS4848-25R).
This unit is also available individually or in the following kits:
Injector only - BT-CAT5-E1
With 48VDC @ 70 Watt Power Supply - BT-CAT5-E1-4870
FEATURES
- (2) 10/100 BaseT Shielded RJ-45 Jacks
- Includes 48VDC @ 48 Watt Power Supply
- One male 2.5mm Power Connection
- 5-48 VDC Max. Input and Output
- Over Current Protection
APPLICATION
- Indoor use only
- IP Surveillance Cameras
- VoIP (Voice over Internet Protocol) Telephones
- Wired Switches
- Wireless LAN Access Points and Bridges
