Description
- 3/4" Inside Diameter
- Color - Black
- Length - 550' Long
- Excellent Flexibility
- Very Good Chemical & Abrasion Resistance
- Operating Temperature of -40F to _F
- Meets the test requirements UL-94 HB @ 1.5 mm (Not UL certified)
- Self-Extinguishing
- REACH & RoHS COMPLIANT

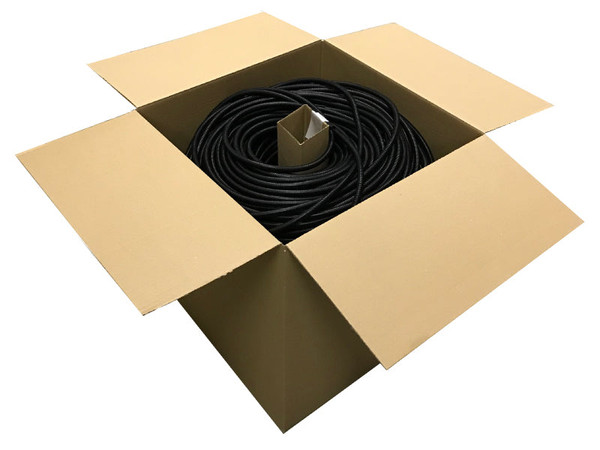

Kable Kontrol High Temp Nylon Split Wire Loom Tubing 3/4" Inside Diameter is an automotive grade convoluted tubing that is lightweight, flexible, easy to use, and provides excellent protection for cables, tubing, hoses, and wire harnesses. Its flexible nature allows it to be installed around tight curves without the slit opening up. Nylon split wire loom is manufactured from impact modified, heat stabilized Nylon 6 that provides excellent resistance to high temperatures, making it suitable for automobile engines. The material is 94HB Rated. Operating temperature: -40F to 300F (-40C to 149C)
Specifications
Performance Enhancers
- Flame Retardant - Yes
- UV Inhibitor - No
- Heat Stabilizer - No
Performance Characteristics
- Flexibility - Good
- Abrasion Resistance - Excellent
- Chemical Resistance - Good
- Recommended Operating Upper Temperature: _F (149C)
- Recommended Operating Lower Temperature: -40F (-40C)
Typical Physical Properties (Test Method - Value - Units)
- Specific Gravity/Density - ISO 1183-A - 1.06
- Elongation @ Break - NA
- Elongation @ Yield - NA
- Tensile Strength @ 25C - ASTM D638-35.2 MPa
- Flexural Modulus - ASTM D790 - 1.9 GPa
- Melting Point - ISO 3146-C - 424F (218C)
- Notched Izod Impact Test - ASTM D256 - 67.4 KJ/m2
- Heat Deflection Temperature @66psi - NA
- Heat Deflection Temperature @264psi - NA
Material Certifications
- Ford -WSS-M4D933-A1
- ASTM -D4066 PA283
- FMVSS 302 -Burn rate of max. 101.2mm / min. (1.0 mm thick) Self-extinguishing
