Description
DESCRIPTION

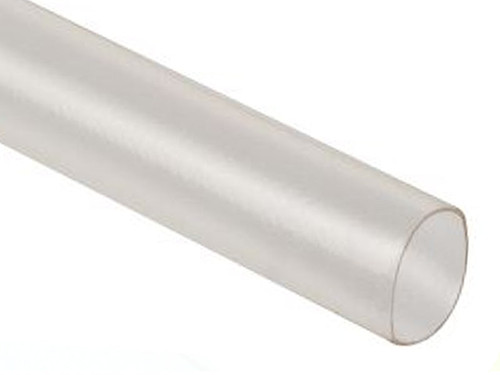

This versatile dual walled adhesive-lined heat shrink tubing is ideally used where protection of cables and wires from moisture is important. Applied with a heat gun, tubing will adhere tightly to whatever wire or component is being protected. Tubing will shrink to 1/4 of it's original size. Typically used for insulation, identification of wires, strain relief and bundling of wires. Manufactured to meet SAE AMS-DTL-23053/4 Class 3 specifications.
FEATURES
- UL Listed, File E536025
- RoHS Compliant
- Only Black Are UV Resistant
- Made From Polyolefin Material
- Available in 4' feet Length
- Shrinks to 1/4 Original Size
- Meets Requirements of AMS-DTL-23053/4 Class 3
- Crosses to Sumitomo W3B2(4X), Raychem ATUM4X, LG GSH4635WT
- Please Note: Our Diameters for Heat Shrink Tubing are measured as ROUND TUBE, NOT FLAT
- Shrink ratio: 75% or more in the radial direction
- Continuous operating temperature: -55°C to 135°C
- Very high heat resistance
- High resistance to chemicals and oils
- Cross Reference: Raychem RP-4800, Alpha FIT 421, LG GSHS-4635
- Mil Spec # AMS-DTL- 23053/5
