Description
DESCRIPTION

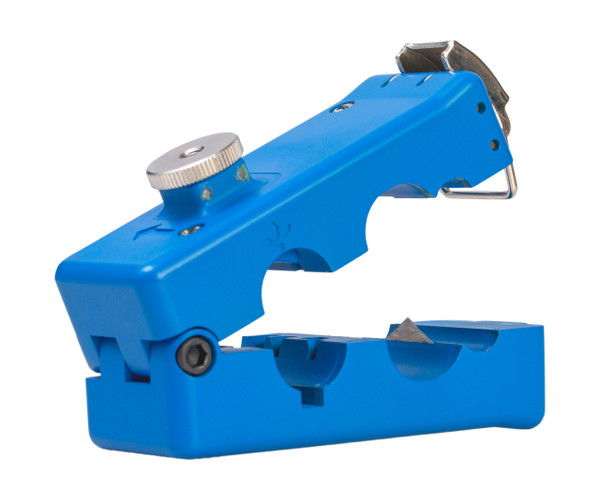

This slitting and shaving tool can be used on the following cables: CommScope® QR 320 CommScope® P3 412 JCAM Times Fiber T10 412 MS CommScope® QR 500 CommScope® QR 540 CommScope® P3 500 JCAM CommScope® P3 565 JCAM Times Fiber T10 500 MS Times Fiber TX 565 MS CommScope® P3 625 JCAM Times Fiber T10 625 MS
FEATURES
- Ultra-sharp steel slitting blade slits even the thickest webbing with ease
- Adjustment knob for the shaver tightens down cables for close shaving
- Locking mechanism provides increased leverage to easily penetrate thick webbing
- Shaving blade removes excess webbing to provide a smooth surface for cable termination
- Slits webbing off figure 8 fiber cables and COAX cables ranging from 0.400"-0.625" in diameter (10.2 mm-15.9 mm)
SPECIFICATIONS
- Cut Type: Slit, Shave
- Cable Type: Messengered Cables
- Cable Size: 0.400"-0.625" (10.2 mm-15.9 mm)
- Dimensions: 4.38 in x 2.07 in x 1.5 in (11.11 cm x 5.26 cm x 3.81 cm)
- Weight: 0.33 lb (150.728 g)
- UPC #: 811490018594
