Description
DESCRIPTION

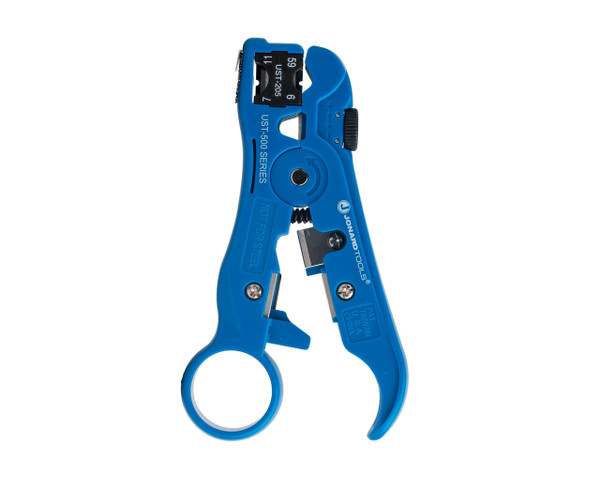

The Jonard Tools UST-500 cable stripping tool is designed to strip COAX, Network Cables, and Telephone Cables for quick and easy termination. Strips CAT3 through CAT 8 network cables. Includes a built-in cutter, a separate slot for flat 4P/6P telephone cable, a hook-and-loop shield-fold strip, and a large finger loop for smooth rotation. Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric in one pass. Backed by Jonard's Lifetime Warranty. This universal stripping tool features the following:
FEATURES
- Adjustable stripping hole strips CAT3 through CAT 8 PVC and Plenum network cables
- Included blade cartridge (UST-205) provides a 2-level strip on RG59, RG6, RG7, and RG11 COAX Cables for F, BNC, and RCA connector termination
- High carbon steel blades last over 5,000 strips on each side
- Cartridge is reversible for ambidextrous use
- Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric in one pass
- Cutter is included to cut all types of cables
- Separate stripping slot included for stripping flat telephone 4P/6P style cable
- Hook and loop strip on bottom of the tool folds back the braided shield on the cable with ease
- Large finger loop provides smooth rotation during use
SPECIFICATIONS
- Cable Type: COAX, Network, Flat Telephone Cable, CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6A, CAT7, CAT7A, CAT 8
- Cable Size: RG-59/6/7/11 COAX, Network up to 1 cm (0.39"), Flat Cable up to 1 cm wide
- Strip Length: Jacket: 0.25" (6.35 mm), Shield & Dielectric: 0.3125" (7.9375 mm)
- Wire Gauge: 22 AWG to 26 AWG (23 AWG solid, 26 AWG stranded)
- Dimensions: 4 in x 2 in x 0 in (10.16 cm x 5.08 cm x 0 cm)
- Weight: 0.14 lb (63.56 g)
- UPC #: 811490012233
