Description
DESCRIPTION

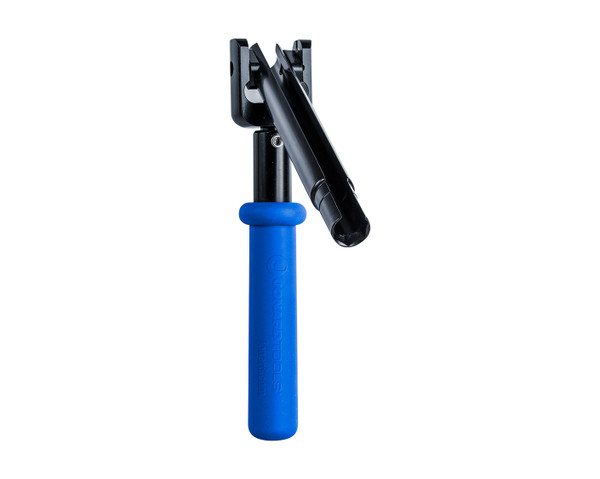

Designed to reach shielded F connector fittings with a preset torque of 30 in-lb, this right angle swivel torque wrench provides a perfectly calibrated amount of torque to prevent damage from over-tightening or signal loss from under-tightening. This torque wrench features the following:
FEATURES
- Provides a snug fit when used on 7/16" F Connectors
- Security shield is permanently attached and pivots in 90° increments
- Calibrated to 30 in-lb (3.39 N-m) to consistently meet most manufacturers' recommended torque requirements for their F Connectors
- Audible click indicates when the connector is fully torqued to 22 in-lb
- Made of high carbon steel with a black oxide finish for maximum durability
- Lifetime Warranty
SPECIFICATIONS
- Connector Type: F Connectors
- Head Type: Swivel
- Torque: 30 in-lb (3.39 N-m)
- Size: 7/16" (11.11 mm) Shield
- Finish: Black Oxide
- Security Shield Length: 4 3/4" (120 mm)
- Dimensions: 11 in x 1.33 in x 1.1 in (27.94 cm x 3.38 cm x 2.79 cm)
- Weight: 0.73 lb (331.42 g)
- UPC #: 811490016651
