Description
DESCRIPTION

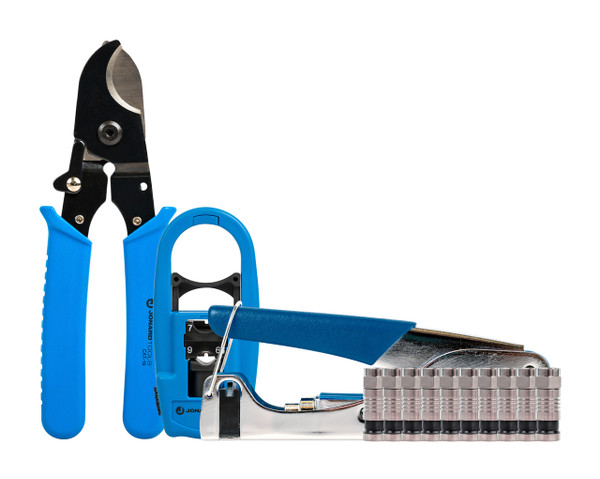

The Jonard TK-RG64 COAX Cable Kit has what you need to cut, strip and terminate coax with F connectors. Cut the cable with the CAT-16 Cable Cutter, whose curved blades handle cable up to 0.50" (12.7 mm). The CST-92 Coaxial Cable Stripper makes a two-level strip on RG59, RG6 (including tri and quad shield), N48, RG7 and RG11, removing 1/4" of jacket and 5/16" of shield and dielectric to expose the center conductor. The CTF-180M Compression Tool then compresses long style F connectors, and the kit includes ten RG6 universal F connectors to get you started. The kit is backed by a lifetime warranty.
FEATURES
- CAT-16 Cable Cutter for cable up to 0.50" (12.7 mm).
- CST-92 strips RG59, RG6, N48, RG7 and RG11 for F, BNC and RCA connectors.
- Two-level strip removes 1/4" of jacket and 5/16" of shield and dielectric.
- CTF-180M Compression Tool for long style F connectors.
- Ten RG6 universal F connectors included; lifetime warranty.
SPECIFICATIONS
- Dimensions: 10 in x 9 in x 1 in (25.4 cm x 22.86 cm x 2.54 cm)
- Weight: 1.4 lb (635.6 g)
- UPC #: 810053351802
