Description
DESCRIPTION

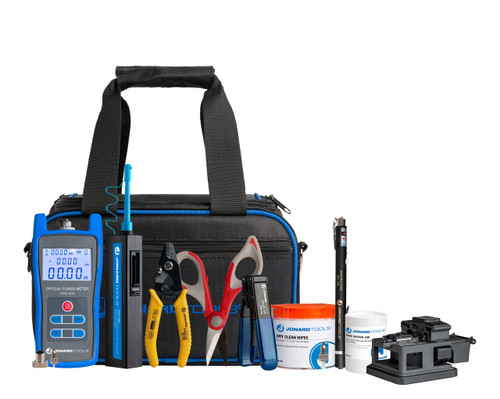

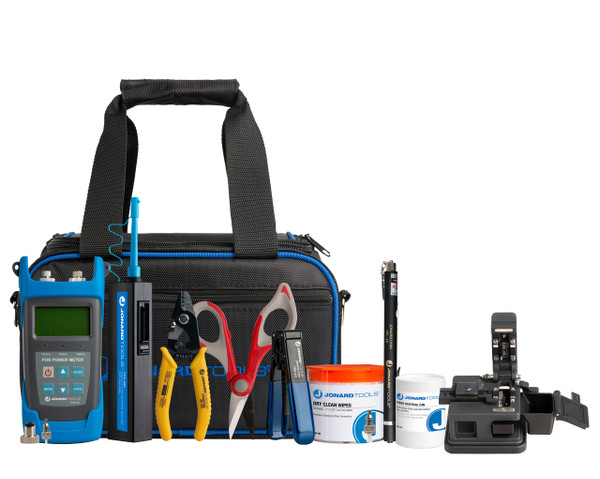

The Jonard Tools TK-185PON FTTH Prep Kit with PON Power Meter offers cleaning and preparation products for use on 1.25 mm and 2.5 mm connector end-faces and bulkhead adapters. The kit features the following:
FEATURES
- PON-50 Passive Optical Network Power Meter tests 1310, 1490 and 1550 nm on BPON, EPON and GPON networks
- Fiber Stripper strips the 1.6-3 mm fiber jacket, 600-900 micron buffer coating, and 250 micron cable down to expose the 125 micron glass fiber
- Fiber Cleaver cleaves either 900 µm buffered or 250 µm coated fiber, perfectly suited for mechanical splicing and quick field termination of fiber connectors
- Dry Wipes for lint-free cleaning of fiber end-faces
- Visual Fault Locator identifies breakpoints, leaks, poor connections, and stress points in fiber optic cable
- Enclosed in our H-22 Rugged Nylon Carrying Case for safety and convenience
SPECIFICATIONS
- Dimensions: 10.5" x 8.5" x 6" (26.67 cm x 21.59 cm x 15.24 cm)
- Weight: 1.64 lb (0.742 kg)
- Weight: 5 lb (2270 g)
- UPC #: 810053350720
