DESCRIPTION

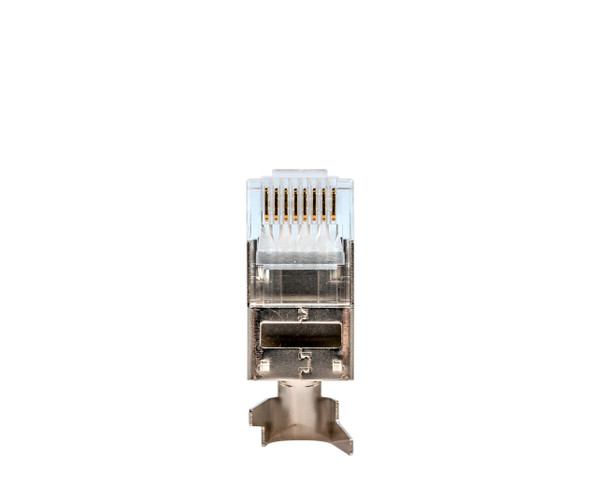

The Jonard Tools CAT6A RJ45 Pass-Through Connectors are used by network installers/technicians in order to terminate CAT6e, CAT6A, and CAT7A network cables with a pass-through crimper. They are used in households and businesses and are ideal for terminating a round network cable or even replacing an existing connector. These connectors feature the following:
FEATURES
- Connectors are shielded with nickel-plated brass to reduce damage if the cable is accidently pulled
- 50 μin gold plating on contact surfaces provides greater signal quality than the competition
- Tripoint-type prongs allow you to use stranded or solid CAT6e, CAT6A, and CAT7 cables
- Simplify twisted pair network cable termination by allowing the wires to pass through the connector
- Advantage of the pass-through feature is that you do not have to measure and cut the wires before termination, which can lead to having poor connection and signal loss
- Clear housing allows the operator to see the wire pairs easily
SPECIFICATIONS
- Number of Connectors: 100
- Cable Type: CAT6e, CAT6A and CAT7
- Cable Diameter: 26 - 23 AWG (5 - 8 mm)
- Connector Type: Three-prong RJ45
- Plating Thickness: 50 micro-inches
- Housing Material: Polycarbonate, Nickel-plated Brass
- Standards: ANSI/TIA-568-C.2, UL 1863, FCC Part 68 subpart F
- Operating Temperature: -10°C to 60°C
- Dimensions: 10 in x 8 in x 0 in (25.4 cm x 20.32 cm x 0 cm)
- Weight: 0.93 lb (422.22 g)
- UPC #: 810053351932
