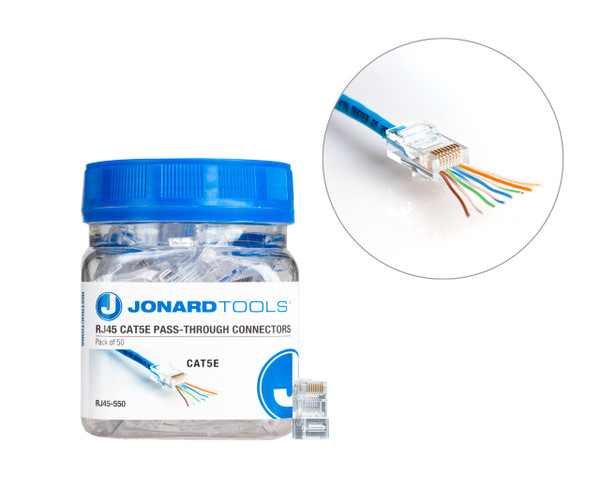

The Jonard Tools CAT5e RJ45 Pass-Through Connectors are used by network installers/technicians in order to terminate CAT5e network cables with a pass-through crimper. They are used in households and businesses and are ideal for terminating a round network cable or even replacing an existing connector. These connectors feature the following:
FEATURES
- 50 μin gold plating on contact surfaces provides greater signal quality than the competition
- Tripoint-type prongs allow you to use stranded or solid CAT5/CAT5e cables
- Simplify twisted pair network cable termination by allowing the wires to pass through the connector
- Advantage of the pass-through feature is that you do not have to measure and cut the wires before termination, which can lead to having poor connection and signal loss
- Clear housing allows the operator to see the wire pairs easily
- Comes packaged in a jar for convenient storage
This product comes in a jar of 50 connectors.
Intended for use with our RJ11 and RJ45 connector crimping tool: UC-4569
SPECIFICATIONS
- Number of Connectors: 50
- Cable Type: CAT5, CAT5e Network Cables
- Connector Type: Three-prong RJ45
- Plating Thickness: 50 micro-inches
- Housing Material: Polycarbonate
- Standards: UL 94V-2, RoHS Compliant
- Operating Temperature: -10°C to 60°C
- Dimensions: 0.88 in x 0.46 in x 0.36 in (2.24 cm x 1.17 cm x 0.91 cm)
- Weight: 0 lb (0.908 g)
- UPC #: 811490018112
