DESCRIPTION

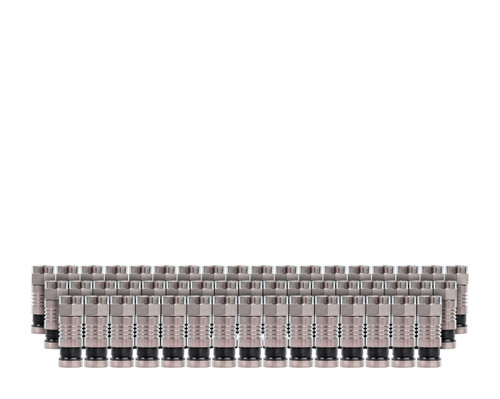

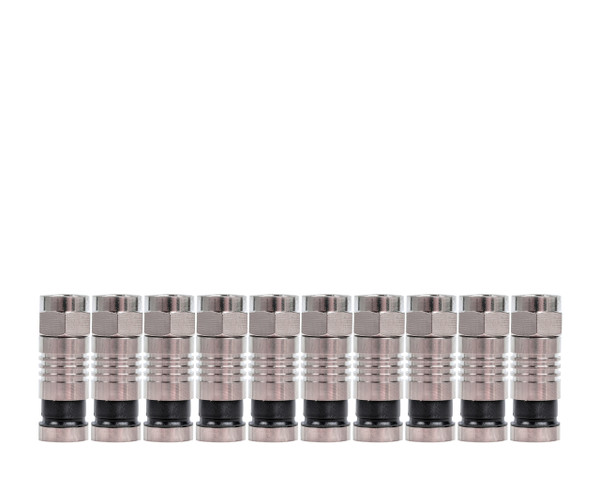

These RG6 connectors are universal compression connectors, ideally suited for professional and consumer use. The one-piece design of these connectors makes them simple to use and provides a secure 360° compression seal, resulting in maximum RF shielding performance. The all-metal design of the connector body and nut allows for unparalleled electrical and mechanical performance. The detachably coupled advanced polymer compression system is pre-positioned to ensure a consistent fit with the cable. These connectors also feature the following:
FEATURES
- Perfect for terminating cables for satellite, cable TV, and cable modems
- The universal one-piece, all-metal design works with Standard, Trishield, and Quadshield RG6 cables
- Detachably coupled, advanced polymer compression system compresses the connector perfectly each time
- Triple internal weather sealing prevents moisture from entering cable without the use of an external weather grommet
- Standard 5/16" - 1/4" cable preparation using industry-standard preparation tools
SPECIFICATIONS
- Connector Type: Q II F-Type Compression Connector (Series 6 Universal Design)
- Standards: IEC 60169-24
- Temperature Range: -40～+60℃
- Vibration: 100 m/s² (10～500Hz)
- Impedance: 75 Ω
- Frequency Range: DC～1GHz
- Working Voltage: 170V Max
- Withstand Voltage: 500V (RMS valid value of sea level)
- Center Contact Resistance: ≤ 10 mΩ
- Outer Contact Resistance: ≤ 5 mΩ
- Insulation Resistance: > 5000 MΩ@ 100 VDC
- Durability: ≥500 cycles
- Return Loss: > 30 dB (5-1000 MHz)
- Shielding Effectiveness: > 95 dB (0-300 MHz), > 70 dB (300 MHz - 1 GHz)
- Screening Attenuation: > 80 dB (3 MHz - 3.0 GHz)
- Dielectric Strength: > 1.0 kVAC for 1 minute
- Dimensions: 4 in x 3 in x 0 in (10.16 cm x 7.62 cm x 0 cm)
- Weight: 0.17 lb (77.18 g)
- UPC #: 810053351789
