Jonard Tools MS-316 Mid Span Slit & Ring Tool

$114.95
SKU:
MS-316
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.


Manufacturer Information

Jonard Tools orders require a $350.00 combined minimum. Please contact us about possible orders under this amount.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

DESCRIPTION

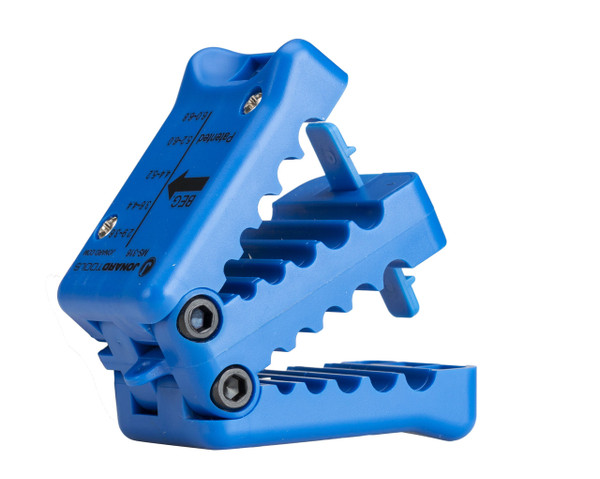

The Jonard MS-316 Mid Span Slit & Ring Tool gives you mid-span access to the fibers in outer jackets and loose buffer tubes from 2.9 mm to 6.8 mm. One side of the tool rings the jacket with a radial cut and the other side slits it lengthwise, so you can open a section of tube with a single tool. It has five slitting grooves and five ringing grooves, sized 2.9-3.6, 3.6-4.4, 4.4-5.2, 5.2-6.0 and 6.0-6.8 mm, and an indicator line on top shows where the blade sits. It weighs under 2.5 oz and has a tethering hole for work in tight spaces. When the blades wear, the MS-316RB replacement blade set puts it back in service. For smaller tubes from 1.2 mm to 3.3 mm, there's the MS-306. It's backed by a lifetime warranty.

FEATURES

  • Five slitting and five ringing grooves from 2.9 mm to 6.8 mm.
  • Ring side makes radial cuts; slit side makes lengthwise cuts.
  • For outer jackets and loose buffer tubes.
  • Indicator line shows the blade position; under 2.5 oz with a tethering hole.
  • Replacement blade set available: MS-316RB; lifetime warranty.

SPECIFICATIONS

  • Cut Type: Slit, Ring
  • Number of Slitting Grooves: 5
  • Number of Ringing Grooves: 5
  • Cable Type: Outer Jackets, Loose Buffer Tubes
  • Cable Diameter: 2.9 mm-6.8 mm
  • Dimensions: 2 in x 1 in x 1 in (5.08 cm x 2.54 cm x 2.54 cm)
  • Weight: 0.16 lb (72.64 g)
  • UPC #: 811490019836
