DESCRIPTION

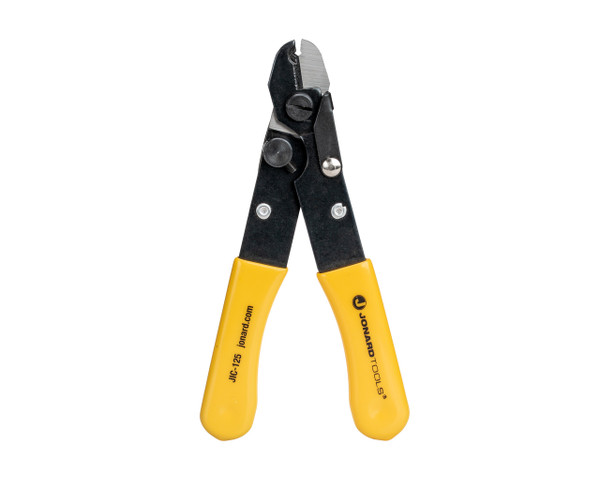

The JIC-125 Compact Fiber Optic Stripper removes the 250 micron coating from optical fiber to expose the 125 micron glass underneath, the step right before cleaning and cleaving. A nick or scratch on the bare glass can ruin the cleave, so the stripping hole is preset at the factory and there is nothing to adjust or get wrong. Close the jaws on the fiber at the length you want to strip, squeeze, and pull the tool straight off the end to slide the coating off. Then clean the bare fiber before you cleave.
FEATURES
- Strips the 250 micron coating to expose the 125 micron optical fiber without nicks or scratches.
- Factory preset stripping hole, so there are no adjustments to make.
- High carbon steel blades are ground and hardened for long life.
- Compact 5-3/16" (131.76 mm) length with yellow cushioned grips.
- Backed by a lifetime warranty.
SPECIFICATIONS
- Cut Type: Strip
- Cable Type: Fiber Optic
- Strip Diameter: 250 micron, 125 micron
- Stripping Holes: 1
- Blade Material: High carbon steel
- Length: 5-3/16" (131.76 mm)
- Dimensions: 5 in x 3 in x 0 in (12.7 cm x 7.62 cm x 0 cm)
- Weight: 0.18 lb (81.72 g)
- UPC #: 811490011465
