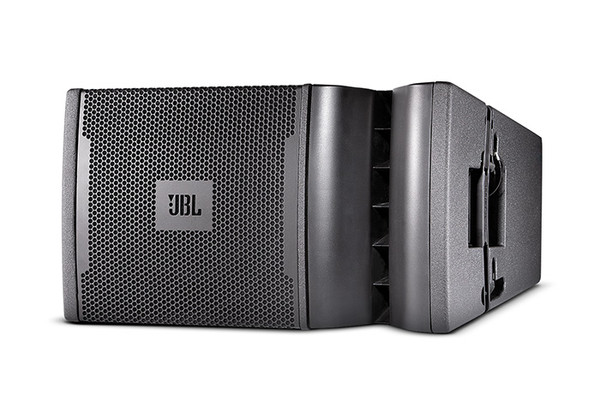

12 in. Two-Way Line Array Loudspeaker System
The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units.
Description
Features
- JBL’s exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
- VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
- Constant Curvature waveguide for unprecedented array coherence.
- Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or
tripod stand. - Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
- Array Configuration Selector permits “array shading” in passive mode.
Specifications
| Power Rating | 800 W / 1600 W / 3200 W |
| Frequency Response (-10dB) | 57 Hz - 20 kHz |
| Dimensions (H x W x D) | 343mm x 597mm x 376mm (13.5in x 23.5in x 14.8in) |
| Frequency Response (±3 dB) | 75 Hz - 20 Hz |
| Coverage Pattern | 100 x 15 nominal |
| Crossover Modes | Bi-amp / passive, externally switchable |
| Crossover Frequency | 132 dB SPL peak 1.2 kHz |
| Maximum SPL (1m) | 130 dB SPL peak (passive mode) LF: 130 dB HF: 139 dB |
| Sensitivity | Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL |
| LF Driver | 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps. |
| HF Driver | 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver |
| Nominal Impedance | Passive = 8 ohm Bi-amp LF = 8 ohm Bi-amp HF = 8 ohm |
| Active Tunings | Tunings available at www.jblpro.com |
| Enclosure | 18 mm, 11-ply birch plywood |
| Suspension / Mounting | Optional VRX932LA-AF line array frame kit |
| Finish | Black DuraFlex™ finish |
| Grille | Power coated, black, 16-guage perforated steel with with acoustically transparent foam |
| Inputs | Neutrik® Speakon® NL-4 (x2) |
| Net Weight (each) | 21 kg (46 lb) |
| Optional Accessories | VRX932LA-AF: Suspension array frame SS2-BK: Tripod speaker stand SS3-BK: Satellite speaker pole,41 in (1041 mm) SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only |
| Outputs | 1 x XLR |
| System Type | Constant Curvature 12" Two-Way Line Array System |
