15 in. Bass Reflex Subwoofer

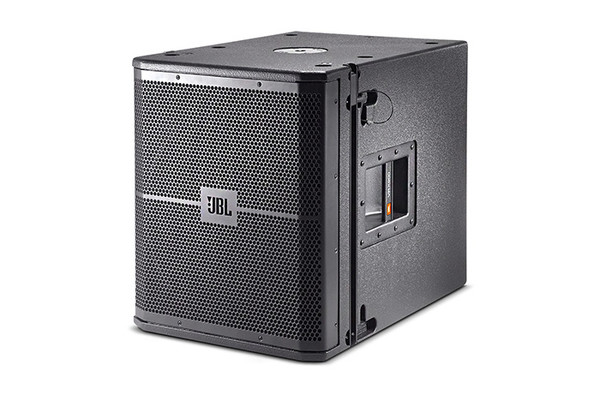

The VRX915S is a compact, high power suspendable subwoofer system containing a 2265G-1 neodymium magnet, patented Differential Drive®, 15" woofer in a front-loaded, vented enclosure.
Description
Features
- Integral rigging hardware for simple connection of VRX915S line-arrays and optional array frame.
- 15 inch, 2265G-1 Differential Drive® woofer for extended low-frequency output.
- Light and compact for versatility and easy handleability.
- 20 mm threaded pole socket for solid, secure satellite speaker mounting.
Applications
- Live performance systems.
- Mobile and fixed DJ systems.
- Sound system rental and tour.
- Permanent installations.
Specifications
| Power Rating | 800 W / 1600 W / 3200 W |
| Frequency Response (-10dB) | 35 Hz - 250 Hz |
| Dimensions (H x W x D) | 496 mm x 420 mm x 597 mm (19.5 in x 16.5 in x 23.5 in) |
| Frequency Response (±3 dB) | 40 Hz - 250 Hz |
| System Maximum SPL | 126 dB SPL |
| System Sensitivity (1w @ 1m) | 91 dB SPL |
| LF Driver | 1 x JBL 2265G-1, 250 mm (15 in) Differential Drive® woofer |
| Nominal Impedance | 4 Ohms |
| Active Tunings | Tunings available at www.jblpro.com |
| Enclosure | 15 mm - 18 mm, multi ply birch plywood |
| Suspension / Mounting | Top mounted M20 threaded socket for optional pole SS4-BK. Integrated flying hardware for use with array frame VRX-SMAF. 8 M10 fittings. Optional M10 eyebolt kit. |
| Finish | Black DuraFlex™ finish |
| Grille | Power coated, black, 16-gauge perforated steel with with acoustically transparent black foam backing. |
| Input Connectors | Switchable, +1/-1 or +2/-2 |
| Net Weight (each) | 26.3 kg (58 lb) |
| Inputs | XLR with loop through |
| Outputs | 1 x XLR |
