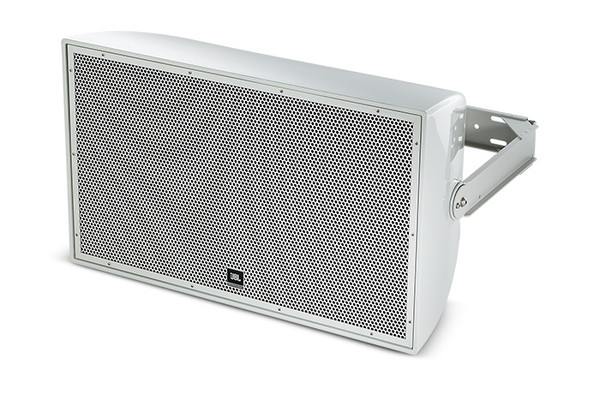

The AW526-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. This loudspeaker is EN 54-24 Compliant for life safety applications. The system is equipped with a 400 W 70/100V transformer.
Description
High Power 2-Way All Weather Loudspeaker with 1 x 15" LF for Life Safety Applications
Features
- Weather-Resistant, All Fiberglass Enclosure
- EN 54-24 Compliant for life safety applications
- 120° x 60° Coverage
- 2265H Differential Drive® Low-Frequency Driver
- 2432H High Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Available in Gray and Black finish
- 400 W, 70/100V Transformer Included
- U-type Mounting Bracket Included
Applications
- Sports Facilities
- Themed Entertainment Venues
- Outdoor Entertainment Centers
- Cruise Ships
- Water Parks
Specifications
| Frequency Response (-10dB) | 39 Hz – 20 kHz |
| Frequency Response (±3 dB) | 86 Hz – 17 kHz |
| Coverage Pattern | 120° x 60°, rotatable waveguide |
| Directivity Factor (Q) | 7.9 |
| Directivity Index (DI) | 9 dB |
| Crossover Frequency | 1.1 kHz |
| System Power Rating | 400 W (1600 W peak), 100 hrs |
| Maximum SPL (1m) | 127 dB-SPL cont avg (133 dB peak) |
| Maximum SPL (@ 4m) | 112.11 dB |
| System Sensitivity (1w @ 1m) | 100 dB |
| Sensitivity (1W @ 4m) | 86.98 dB SPL |
| Transformer Taps | 70V: 400 W, 200 W, 100W100V: 400W, 200W |
| LF Driver | 1 x JBL 2265H 380 mm (15 in.) Differential Drive® driver with 75 mm (3 in) dual voice coil |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W @ 1m, within operational band) | 98 dB SPL |
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| Sensitivity | 113 dB SPL |
| Waveguide | PT-H126HF -1 |
| Enclosure | Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK) |
| Suspension Attachment | 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety. |
| Grille | Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh. |
| Input Connector | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. |
| Environmental | IP55C per IEC 529 |
| Dimensions (H x W x D in horizontal cabinet orientation) | 485 x 810 x 478 mm(19.1 x 31.9 x 18.8 in) |
| Net Weight (each) | 28.3 kg (62.5 lb) |
