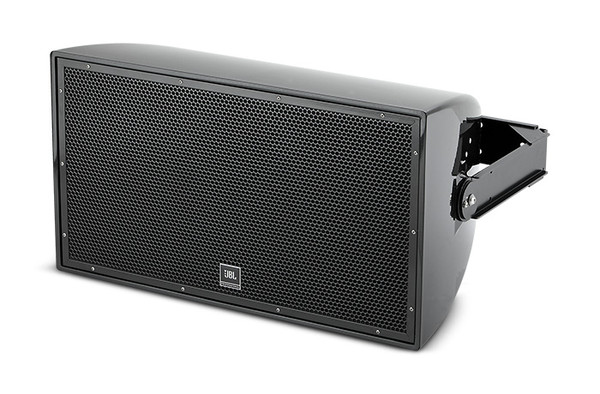

JBL AW266-LS-BK High Power 2-Way All Weather Loudspeaker

JBL AW266-LS-BK High Power 2-Way All Weather Loudspeaker

$4,687.43
SKU:
AW266-LS-BK
Shipping:
Calculated at Checkout
Size:
12"
Color:
Black
Wattage:
400 Watts
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

High Power 2-Way All Weather Loudspeaker with 1 x 12" LF for Life Safety Applications

The AW266-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation.

Features

  • Weather-Resistant, All Fiberglass Enclosure
  • EN 54-24 Compliant for life safety applications
  • 60° x 60° Coverage
  • 2262H Differential Drive® Low- Frequency Driver
  • 2432H High Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Available in Gray and Black finish
  • 400 W, 70/100V Transformer Included
  • U-type Mounting Bracket Included

Applications

  • Sports Facilities
  • Themed Entertainment Venues
  • Outdoor Entertainment Centers
  • Cruise Ships
  • Water Parks

Specifications


Frequency Response (-10dB) 54 Hz – 20 kHz
Frequency Response (±3 dB) 102 Hz – 18 kHz
Coverage Pattern 60° x 60° waveguide
Directivity Factor (Q) 15.8
Directivity Index (DI) 12 dB
Crossover Frequency 1.1 kHz
System Power Rating 400 W (1600 W peak) 100 hrs
Maximum SPL (1m) 125 dB SPL (131 dB peak)
Maximum SPL (@ 4m) 112.45 dB
System Sensitivity (1w @ 1m) 98 dB SPL
Sensitivity (1W @ 4m) 87.16 dB SPL
Transformer Taps 70V: 400 W, 200 W, 100W 100V: 400W, 200W
LF Driver 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
Nominal Impedance 8 ohms
Sensitivity (1W @ 1m, within operational band) 96 dB SPL
HF Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity 113 dB SPL
Waveguide PT-H66HF-1
Enclosure Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK)
Suspension Attachment 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
Grille Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
Input Connector CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental IP55C per IEC 529
Dimensions (H x W x D in horizontal cabinet orientation) 409 x 732 x 452 mm(16.1 x 28.8 x 17.8 in)
Net Weight (each) 25.2 kg (55.5 lb)
