Description

ClimaGuard Air-to-Air Heat Exchanger Indoor, XR60 55w/F 230v

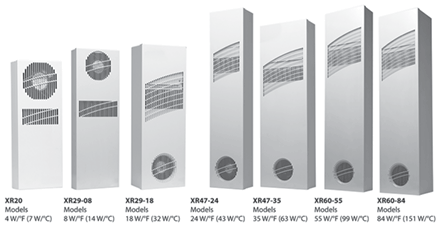

Unique counterflow aluminum core for high-efficiency and high-performance heat transfer, except for the XR20 and XR29-08 which use a modified heat pipe core
Streamlined aesthetics with no visible mounting rails; slim design allows for mounting to narrow or shallow enclosures
Models for 115 and 230 VAC power input
Operating temperature range from -20 F/-29 C to 140 F/60 C
Low-carbon mild-steel sheet-metal cover for rugged factory environments
Filterless design for low maintenance and easy cleaning
Reliable top-quality bearing fans and impellers make these units run quietly and with increased reliability
Easy-mount flanges for simple installation
Every unit functionally tested before shipping
Mounting hardware, gaskets and user manual furnished with the unit
Four fasteners allow simple removal of front cover for easy access

PRODUCT ATTRIBUTES

Height: 59.66 in / 1515 mm
Width: 15.24 in / 387 mm
Depth: 5.92 in / 150 mm
Capacity Watts Per °C: 99 W
Capacity Watts Per °F: 55 W
Nominal Voltage: 230 V
Voltage AC: 200 V
Max Current: 3.3 A
Operating Temperature: −20 to 140 °F / −29 to 60 °C
Max Watts Per °F: 55 W
Max Watts Per °C: 99 W
Protection Rating: NEMA Type 12; NEMA Type 3R
Material: Mild Steel
Finish: Powder Coated
Color: Light Gray
Color Code: RAL 7035
Thickness: 18 ga / 1.21 mm
Weight: 93.3 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

nVent Hoffman’s ClimaGuard Indoor Heat Exchangers offer reliable closed-loop cooling while sealing out temperature extremes, dirt, dust, corrosive elements and washdown water. This robust heat exchanger allows efficient thermal transfer while ensuring maximum protection against leaks. With ClimaGuard Indoor Heat Exchangers providing a tight seal against air and water infiltration, units can be simply surface-mounted to an enclosure with no loss of enclosure integrity.

BULLETIN NUMBER

MCLHE
