APPLICATION:

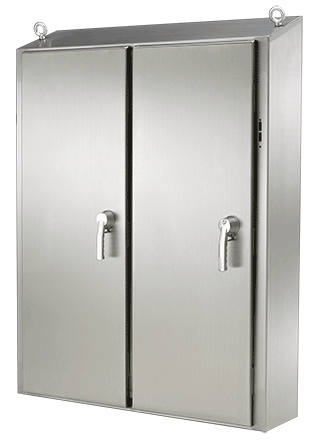

The Hoffman WATERSHED Stainless Steel Free-Stand Disconnect Enclosure, with its unique design and Category 4X rating, is a perfect fit for mounting electrical or high-tech electronic equipment in settings such as sanitary washdown production environments, petrochemical plants, pulp and paper facilities, and water treatment plants.
SPECIFICATIONS:
- Manufactured from 12 gauge Category 304 stainless steel; back is 10 gauge
- Seams continuously welded and ground smooth
- Smooth Category 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by door edges
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits placement of objects on top of enclosure
- 170-degree door opening
- Door edges are sloped 20 degrees at top and bottom edges to facilitate runoff
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Heavy-duty three-point latching mechanism operated by a Category 316 stainless steel POWERGLIDE padlocking handle on all doors • Master door has POWERGLIDE handle with integral screwdriver defeater • Mechanical interlock activated by master door prevents slave doors from being opened first. Doors can be closed in any order.
- Master door is far right-hand door on all enclosures
- Seamless foam-in-place one-piece gasket provides an oil-tight, water-tight and dust-tight seal against contaminants
- Bonding provision on doors; grounding stud on body
- Accessory mounting channel provided in enclosure top
- Heavy-duty lifting eyes are Category 316 stainless steel
- Removable centerpost permits easy panel installation
- Panel studs accept optional NEMA-size panels
- Preferred cutout on right flange provides mounting for most disconnect operators
- Mounting holes in bottom of enclosure for direct mounting or for optional sanitary legs or stainless steel floor stands
- Furnished hardware kit consists of panel mounting nuts, grounding hardware and hole seals for bottom mounting holes
FINISH:
- Stainless steel enclosures are unpainted.
- External surfaces have a #4 brushed finish.
- Optional mild steel panels are painted white.
- Optional conductive panels are available.
ACCESSORIES:
- Industrial Corrosion Inhibitors
- Floor Stand Kit
- Panels for Category 3R, 4, 4X, 12 and 13
- Enclosures Operator Adapters for Preferred Cutouts
- Sanitary Leg Kits
- An operator adapter for a preferred cutout must be ordered separately.
