Description
APPLICATION:

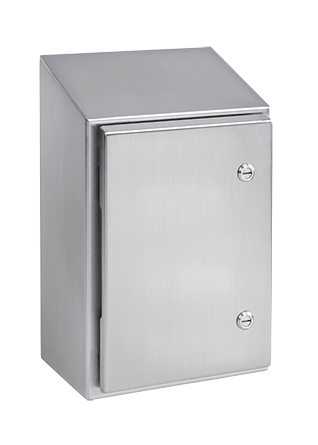

Specifically designed for use in sanitary wash-down production environments, particularly food and beverage manufacturing. Hoffman WATERSHED Enclosures feature a sloped top, sloped door edges, bullet-style hinges and additional unique features that facilitate washdown runoff.
SPECIFICATIONS:
- Manufactured from 14 gauge Category 304 stainless steel
- Seams continuously welded and ground smooth
- Smooth Category 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by door
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
- 170-degree door opening
- Door edges are sloped 20-degrees at top and bottom edges to facilitate runoff
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Stainless steel quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Enclosures with ‘A’ dimension of 16.00 (406 mm) or greater utilize NEMA style panels; models with ‘A’ dimension less than 16.00 (406 mm) utilize junction box style panels.
- Mounting holes in back of body for direct mounting, optional stand-off kit or mounting bracket kit
- Furnished hardware kit consists of panel mounting fasteners, grounding hardware and sealing washers for wall-mounting holes
FINISH
- External surfaces have a #4 brushed finish.
ACCESSORIES:
- Mounting Bracket Kit
- Panels for Category 3R, 4, 4X, 12 and 13 Enclosures
- Stand-Off Kit
- Padlocking Handle Kit
- Padlocking Latch Kit
- H2OMIT Vent Drains, Category 4X
- H2OMIT Thermoelectric Dehumidifier
