Description

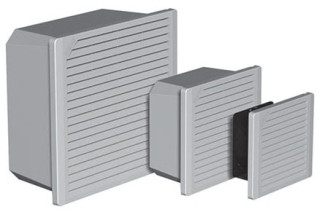

TFP10 Side-Mount Filter Fan Type 1, 230V 215CFM, Light Gray, Composite
- Cooling Fan Package includes fan, air filter, composite air plenum, finger guard and grille
- Exhaust Package includes air filter, filter retainer with integral finger guard and grille
- EMC Upgrade Kit includes a grille standoff collar and a special EMC shielding grille
- Reliable cooling for enclosures with limited space requiring simple filtered airflow for basic cooling
- 24 VDC, 115 VAC and 230 VAC options available
- Washable foam (Type 1) or disposable (Type 12) filter in fan
- Dynamically-balanced fan impellers molded from polycarbonate material
PRODUCT ATTRIBUTES
- Height: 11.81 in / 300 mm
- Width: 12.99 in / 330 mm
- Depth: 5.7 in / 145 mm
- Airflow: 215 ft³/min / 365 m³/h
- Nominal Voltage: 230 V
- Voltage AC: 200 V
- Max Current: 0.35 A
- Operating Temperature: 167 °F max / 75 °C max
- Material: Composite
- Finish: Smooth Matte
- Color: Light Gray
- Color Code: RAL 7035
- Weight: 7.8 lb
DRAWINGS AND DOCUMENT DOWNLOADS
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
TFP Side-Mount Fans provide reliable cooling for enclosures with limited space requiring simple filtered airflow for basic cooling. Engineered for 50,000 hours of continuous operation without lubrication or service.
BULLETIN NUMBER
D85
